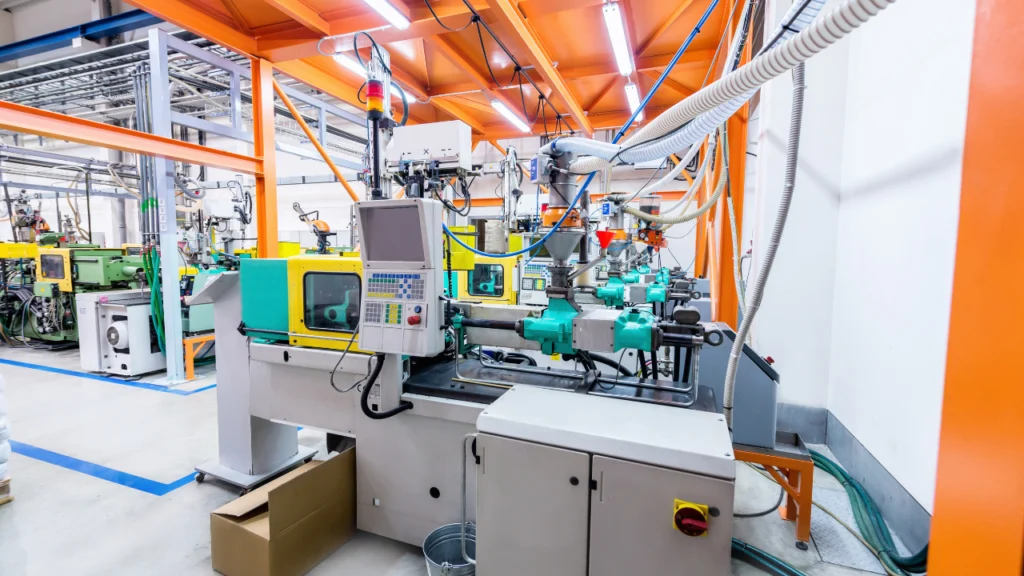

ABS plastic injection molding is one of the most forgiving processes in the thermoplastics toolkit, but “forgiving” does not mean error-proof. Run ABS at the wrong melt temperature or with moisture above 0.1%, and you will scrap parts. Get the conditions right and you can hold tolerances of ±0.003 in/in on a $14,000 offshore tool that would cost $38,000 domestically.
ABS Material Properties That Drive Mold Design
ABS is a terpolymer: acrylonitrile for chemical resistance and hardness, butadiene for impact toughness, and styrene for processability and surface finish. The ratio of those three monomers is what separates one grade from another. Understanding abs material properties at this level prevents costly mold revisions later.
Key physical benchmarks for general-purpose ABS (Sabic Cycolac GP22 is a common reference grade) include a Vicat softening point near 217°F (103°C), a notched Izod impact of 6 to 8 ft-lb/in, and a tensile modulus around 320,000 psi. Heat-deflection temperature (HDT) at 264 psi sits between 180°F and 220°F depending on grade.
Steel selection follows from those properties. A P20 pre-hardened tool at 28 to 32 HRC handles general-purpose and high-impact ABS without issue for 300,000 to 500,000 shots. Plating-grade ABS requires a polished, corrosion-resistant cavity, so we specify 420SS or a nickel-plated P20 to prevent the surface pit defects that chrome plating will reveal.
| ABS Grade | HDT at 264 psi (°F) | Notched Izod (ft-lb/in) | Typical Steel | Common Application |
|---|---|---|---|---|
| General Purpose | 180 to 200 | 6 to 8 | P20 | Housings, enclosures |
| High Impact | 170 to 185 | 10 to 14 | P20 | Tool housings, handles |
| Heat Resistant | 210 to 230 | 3 to 5 | P20 or H13 | Automotive interior trim |
| Plating Grade | 185 to 205 | 5 to 7 | 420SS or nickel-plated P20 | Chrome-plated decorative parts |
ABS Shrinkage and Dimensional Tolerancing
ABS shrinkage runs 0.4% to 0.8% (0.004 to 0.008 in/in), which is relatively tight compared to polypropylene at 1.0% to 2.0%. That range still spans a factor of two, so locking in the correct value before steel-safe cuts are made is mandatory. The SPI mold classification 101 standard does not specify shrinkage values, but most mold shops quote a nominal of 0.005 in/in for general-purpose ABS as a starting point.
Wall thickness drives the high end of that range. Thick walls cool slower, and slower cooling means more volumetric relaxation and higher shrinkage. Hold 0.060 in to 0.120 in wall thickness on ABS parts and you can control shrinkage variance to within 0.001 in/in. Push past 0.150 in and sink marks, voids, and unpredictable shrink values follow.
Draft angle requirements are modest on ABS. A 1-degree draft per side is adequate for non-textured surfaces. Add 0.5 degrees per 0.001 in of texture depth on any EDM-textured cavity surface, per SPI/SPE Texturing Guidelines. Heat-resistant grades are stiffer and grip cores harder, so bump draft to 1.5 degrees minimum on those grades to prevent drag marks on ejection.
ABS Molding Conditions: Temperature, Pressure, and Timing
Nail these abs molding conditions and you eliminate 80% of common defects before the first shot. Melt temperature for general-purpose ABS runs 430°F to 480°F (221°C to 249°C). Heat-resistant grades need 460°F to 510°F (238°C to 266°C) to fully plasticize without burning the styrene phase. Confirm actual melt temp with an air-shot pyrometer, not the barrel setpoint.
Mold temperature is equally important. Run cavity-side coolant at 130°F to 160°F (54°C to 71°C) for general-purpose and high-impact grades. Plating-grade ABS needs 140°F minimum to develop the surface crystallinity that promotes chrome adhesion. Below 120°F, you get parts that look fine but fail plating adhesion tests at 60 to 90 days.
Injection pressure runs 8,000 to 15,000 psi at the nozzle, with pack and hold at 50% to 70% of injection pressure. Screw back-pressure of 50 to 100 psi (at the screw) ensures a homogeneous melt without excessive shear heating. Cycle time on a 0.100 in wall section averages 25 to 35 seconds with proper cooling, assuming mold temperature is held within ±5°F across the tool.
Drying is non-negotiable. ABS is hygroscopic and absorbs moisture from ambient air at roughly 0.2% to 0.3% by weight in 24 hours at 73°F. ISO 294-1 testing protocols confirm that moisture above 0.1% causes splay and degraded impact strength. Dry at 176°F (80°C) for 2 to 4 hours in a desiccant dryer. Hopper dryers without desiccant are inadequate for overnight-exposed material.
Common ABS Injection Molding Defects and Root Causes
ABS injection molding defects follow predictable patterns. Identifying the root cause in the first three shots saves days of trial-and-error. The defects below account for roughly 90% of what we see in our shops during first-article inspection on new offshore tools.
Splay and Silver Streaks
Splay is almost always a moisture problem. Confirm drying conditions first. If the resin is dry, look at shear-induced splay from excessive injection speed or a gate that is undersized for the flow rate. A fan gate or a tab gate wider than 0.060 in resolves most shear-splay cases. Degraded regrind mixed above 20% by weight also produces splay through contamination.
Sink Marks and Voids
Sinks appear directly over ribs, bosses, or thick sections that cool slower than the surrounding wall. The fix is geometric before it is process: keep rib thickness at 60% of the nominal wall, and boss wall thickness at 60% of the nominal wall. If geometry is fixed, increase pack pressure and extend hold time in 0.5-second increments until the sink resolves. A void at the center of a thick section is a shrinkage void, not a sink; increase gate size and pack pressure together.
Weld Lines and Knit Lines
ABS weld lines form where two flow fronts meet after traveling around a hole, core, or insert. Weld line strength on ABS runs 70% to 90% of base tensile strength depending on melt temperature at the meeting point. Higher melt temperature and higher mold temperature both improve weld line integrity. Relocating the gate to force the weld line to a low-stress zone is the most reliable fix when strength is the requirement.
Warpage
ABS warps when cooling is asymmetric, when residual stress from high injection speed is locked in, or when wall thickness varies by more than 25% across the part. Run a conformal-cooled insert on long, flat ABS covers if conventional baffles and bubblers cannot maintain a surface temperature delta below 10°F across the cavity. On our offshore programs, we have corrected warpage of 0.030 in on a 12 in panel down to under 0.008 in by adding two additional cooling circuits without touching the part geometry.
Short Shots
Short shots on ABS point to insufficient venting first, inadequate melt temperature second, and gate restriction third. ABS requires vent depths of 0.0010 in to 0.0015 in at the parting line per Moldflow standard practice. Deeper vents flash. Add runner vents and pin vents at the last-fill location confirmed by mold-flow simulation. If venting is proven adequate, raise melt temp in 10°F increments before touching injection speed.
Gate Type and Runner System Selection
Gate selection for ABS balances cosmetic requirements against flow dynamics. For non-cosmetic parts, a standard edge gate at 60% to 80% of wall thickness in height works reliably. For cosmetic covers and housings, a submarine gate into a cold-slug well keeps the gate vestige below the part surface. Fan gates on wide, thin-walled panels keep injection pressure below 12,000 psi and reduce weld line formation.
Hot runner systems make sense on ABS when annual volume exceeds 100,000 shots or when a cold runner would consume more than 15% of shot weight in waste. Valve-gated hot runners eliminate gate vestige entirely and are the standard choice on plating-grade ABS parts where any surface irregularity telegraphs through chrome. Expect a $4,000 to $8,000 adder per drop on offshore tooling for a quality valve-gate hot tip from a supplier like Yudo or Mold-Masters.
Runner balance matters more on ABS than on forgiving materials like polyethylene because ABS is shear-sensitive above 480°F. A geometrically balanced runner system keeps fill times within 0.2 seconds across all cavities, preventing one cavity from overpacking while another short-shots. We specify naturally balanced H-pattern runners on all multi-cavity ABS tools above four cavities.
Offshore Tooling Considerations for ABS Programs
ABS is one of the best candidates for offshore tooling because its processing window is wide enough to accommodate minor press variation between a Chinese shop and a US production facility. The mold itself does not care where it runs if the steel grade, cooling circuit design, and venting spec are documented correctly in the tool design package.
Specify P20 tool steel with a minimum hardness certification of 28 HRC on the tool acceptance documents. Require hardness test certificates from the steel mill, not just the mold shop. On heat-resistant ABS programs with cycle temperatures above 500°F, upgrade cavity inserts to H13 at 44 to 48 HRC to prevent premature wear at the gate area. That upgrade adds roughly $1,200 to $2,500 to offshore tool cost and saves weeks of repair downtime at 200,000 shots.
Run a full first-article inspection per AIAG PPAP Level 3 requirements before accepting the tool for shipment. Measure abs shrinkage on the first 30-piece sample at the offshore press, then re-measure the same 30 pieces 48 hours after molding to capture post-mold shrinkage. ABS post-mold shrinkage is typically complete within 24 to 48 hours, but heat-resistant grades with higher filler loading can move for up to 72 hours.
Frequently Asked Questions
What is the correct drying temperature and time for ABS before injection molding?
Dry ABS at 176°F (80°C) for 2 to 4 hours in a desiccant dryer. Moisture content must be below 0.1% by weight before processing. A simple moisture analyzer check on a 5-gram sample takes 10 minutes and prevents an entire run of splay-defected parts.
What draft angle should I use for ABS injection molded parts?
Use 1 degree per side minimum on smooth cavity surfaces. Add 0.5 degrees for every 0.001 in of texture depth on EDM-textured surfaces. Heat-resistant ABS grades need at least 1.5 degrees due to higher stiffness at ejection temperature.
How does ABS shrinkage compare to other common thermoplastics?
ABS shrinkage runs 0.4% to 0.8% (0.004 to 0.008 in/in). That is significantly lower than polypropylene at 1.0% to 2.0% and nylon 6/6 at 1.0% to 1.5%, making ABS one of the better choices when tight dimensional tolerances are the design requirement.
Can ABS be processed in a hot runner system?
Yes. ABS processes well in hot runner systems when melt temperature is held below 500°F to prevent styrene degradation and discoloration. Valve-gated systems are preferred for cosmetic parts and plating-grade applications. Specify a hot runner supplier with ABS-specific tip geometry to prevent drool and stringing.
What steel grade should I specify for an ABS injection mold?
P20 at 28 to 32 HRC handles general-purpose and high-impact ABS through 500,000 shots under normal conditions. Plating-grade ABS requires 420SS or nickel-plated P20 for corrosion resistance. Heat-resistant ABS programs with elevated melt temperatures benefit from H13 at 44 to 48 HRC on gate-area inserts to prevent erosion.
If you are qualifying a new ABS tool or troubleshooting an existing program, run your part geometry through our clamp force calculator to confirm press size before the tool ships. For a full process development package, our injection molding consulting team can review your tool design and molding conditions against the parameters in this guide.
