Automotive injection mold sourcing from China works, but only when you pick suppliers who can actually run IATF 16949-certified quality systems and deliver PPAP-compliant documentation. OEMs and Tier-1 suppliers that vet correctly pay $28,000 to $65,000 for complex class-A exterior molds that would cost $90,000 to $180,000 domestically. The gap is real, but so is the failure rate when procurement skips the right checkpoints.

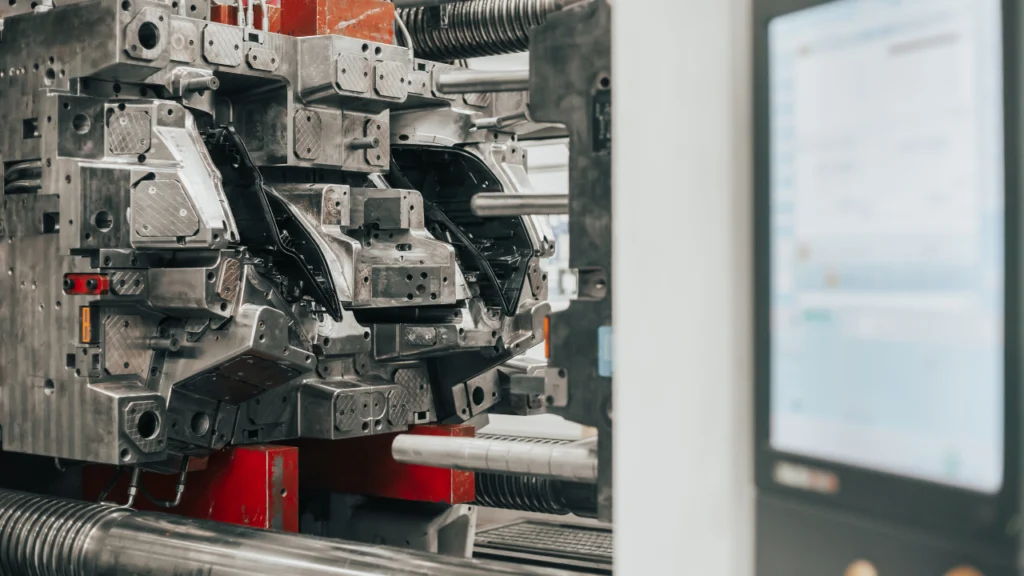

Why Automotive Programs Demand More Than Standard Offshore Tooling
A consumer electronics mold can leave China with a 2D drawing and a first-article report. An automotive mold cannot. Your program runs under IATF 16949, APQP phase gates, and customer-specific requirements from OEMs like GM, Ford, Stellantis, or Toyota. Every one of those documents creates audit trails that extend all the way back to the tooling source.
PPAP Level 3 submissions, which are the most common requirement for new tooling, require 18 elements under the Automotive Industry Action Group standard. Dimensional results, material certifications, process flow diagrams, control plans, and MSA studies all have to be traceable to the mold that produced the submission parts. If your China mold supplier cannot generate those documents in an auditable format, you have a problem before the first production run starts.
Steel certification is the place most offshore programs fall short first. P20 and H13 are the minimum steel grades for automotive cavity and core work in most OEM specs. Some programs, especially those running glass-filled nylon or PPS, require H13 heat-treated to 48 to 52 HRC on core and cavity surfaces. Verify the mill cert, not just the shop’s verbal confirmation, before mold build begins.
IATF 16949 China Mold Suppliers: What Certification Actually Means
An IATF 16949 China mold supplier holds a certificate issued by a third-party certification body accredited under the International Automotive Task Force scheme. The certificate covers the quality management system at a specific facility, not the company brand. A supplier group with four plants may have IATF coverage at only one of them. Confirm the certificate scope matches the production facility you are sourcing from.
IATF 16949:2016, which replaced ISO/TS 16949:2009, added explicit requirements for risk management, embedded software for product with embedded software, and supply chain management. For a mold shop, the practical impact shows up in calibration records, tool and gauge control, preventive maintenance documentation, and training records for machine operators. When we audit automotive mold manufacturer China candidates for our clients, those four areas generate the most non-conformances on first visit.
Certification does not equal competence on your specific part geometry. A certified shop that has never built a Class-A visible surface mold with 0.5-degree draft and a 500mm x 400mm shut-off should not be your first call for a B-pillar trim tool. Ask for the capability matrix, not just the certificate. Production sample photos of comparable parts, steel hardness logs from prior jobs, and CMM reports from delivered tools tell you more than a wall certificate.
Key IATF 16949 Audit Points for Mold Suppliers
- Calibration system: all gauges, CMMs, and hardness testers on a documented recall schedule
- Corrective action process: 8D response capability with root-cause analysis to a manufacturing level
- Design records: ability to maintain and transfer 3D model revisions with ECN documentation
- Preventive maintenance: scheduled PM on EDM, CNC, and injection presses used for mold tryout
- Supplier control: traceability of purchased steel, standard components, and hot runner systems to lot records
PPAP for Injection Molds Built in China: Levels, Timelines, and Common Failures
PPAP submission requirements for injection molded automotive parts follow the AIAG PPAP 4th Edition manual. Level 1 requires only a Part Submission Warrant. Level 3 requires the PSW plus all supporting documentation retained at the supplier. Level 5 requires full documentation reviewed at the production facility, which for an offshore program means either a customer plant visit to China or a third-party review with full file transfer to your team.
PPAP Level 3 is the default for most new automotive mold programs. Expect the full documentation cycle to add 3 to 5 weeks to your project timeline after the first successful T3 trial run. That window covers dimensional reporting against a drawing with GD&T callouts, material certs for the production resin lot, appearance approval if required, and final PSW signature authority from both the supplier quality engineer and your approved customer contact.
Common PPAP failures we see on ppap injection mold China programs center on four issues. First, dimensional non-conformances from gate vestige exceeding the 0.4mm limit on class-A surfaces. Second, incomplete material documentation when the supplier substitutes a local resin distributor for the OEM-approved material source. Third, missing Cpk data because the tryout run used fewer than 300 consecutive parts. Fourth, MSA studies run on attribute gauges when the drawing calls for variable measurement. Each of these failures resets the submission clock and can cost 2 to 4 weeks of program time.
| PPAP Level | Documents Required | Retained Where | Typical Use Case |
|---|---|---|---|
| Level 1 | PSW only | Supplier | Bulk commodities, minor design changes |
| Level 2 | PSW + selected documents | Supplier, copies to customer | Low-risk production parts, existing designs |
| Level 3 | PSW + full documentation package | Supplier, copies to customer | New tooling, new part numbers, most OEM programs |
| Level 4 | PSW + customer-specified documents | Customer-defined | Customer-specific requirements |
| Level 5 | PSW + full package reviewed at production site | Production facility | Safety-critical parts, Tier-1 internal reviews |
Automotive Tier-1 Mold Supplier Expectations from China
When a Tier-1 automotive supplier sources tooling, the requirements stack above what a typical OEM direct-to-China program demands. The Tier-1 still owns the PPAP submission to the OEM, so they need the mold supplier to generate documentation that their own SQE team can review, approve, and pass forward without rework. That means your China shop needs to speak the same quality language as the Tier-1’s internal system, not just deliver usable parts.
Tier-1 programs typically add customer-specific requirements on top of IATF 16949. Denso, Aptiv, Magna, and Lear all publish CSRs that govern supplier quality, packaging, and run-at-rate expectations. If you are sourcing as an automotive tier 1 mold supplier relationship, confirm the China shop has reviewed and acknowledged those CSRs in writing before tool build authorization. Verbal confirmations at the kickoff call do not survive a supplier audit.
Run-at-rate (RAR) validation is a requirement that many offshore mold programs underestimate. The RAR event requires the supplier to demonstrate they can produce parts at the contracted cycle time, at target quality, for a defined continuous period, usually 4 hours minimum. For a structural door panel running a 55-second cycle in a 2,200-ton press, the RAR event means producing approximately 260 consecutive acceptable parts with documented process parameters. Your China mold shop needs press capacity, qualified operators, and documented process sheets to run that event credibly.
Automotive Injection Mold Sourcing Benchmarks: Pricing, Lead Times, and Steel Standards
Pricing for automotive tooling from China varies by complexity, cavity count, and steel specification. The numbers below reflect 2023 to 2024 program data from tools we have managed through production qualification. These are not catalog prices. They reflect full T1 through PPAP-complete cost including three mold trials, dimensional reporting, and shipping to a US molding facility.
| Mold Type | Steel Spec | China Price Range | US Domestic Equivalent | Lead Time (China) |
|---|---|---|---|---|
| Interior trim, single cavity, no texture | P20 | $18,000 to $32,000 | $48,000 to $75,000 | 10 to 13 weeks |
| Structural bracket, 2-cavity, glass-filled PA66 | H13 (48 HRC) | $28,000 to $45,000 | $70,000 to $110,000 | 12 to 16 weeks |
| Class-A exterior panel, single cavity, hot runner | H13 (50 HRC) | $55,000 to $85,000 | $130,000 to $190,000 | 16 to 22 weeks |
| Connector housing, 8-cavity, tight tolerance | 420SS or H13 | $35,000 to $58,000 | $90,000 to $140,000 | 14 to 18 weeks |
Lead times above assume clean 3D data at kickoff, no DFM revision loops exceeding two cycles, and OEM-approved resin available in China for tryout. Each DFM cycle that requires a full geometry revision adds 1 to 2 weeks. Each resin substitution that requires customer approval adds 1 to 3 weeks. Build those contingencies into your program schedule before you commit to your internal launch gate.
Steel sourcing is a procurement decision with long-term quality consequences. Bohler, Uddeholm, and ASSAB are the mill brands we specify for high-volume automotive work because their certification traceability meets OEM steel approval requirements from Ford (W-HTX-2), GM (GMW3179), and Stellantis programs we have run. Chinese domestic steel grades like 718 and 738 are P20 equivalents and are acceptable for low-volume or prototype tooling, but confirm acceptance with your customer before authorizing their use on production tools.
APQP Integration: Tying the China Mold Build to Your Program Gate Structure
APQP, the Advanced Product Quality Planning process defined by AIAG, structures automotive product development into five phases. The mold build sits primarily in Phase 3 (Product and Process Design Development) and Phase 4 (Product and Process Validation). Most program failures we see trace back to mold status not being properly tracked against Phase 3 gate reviews.
Your China mold supplier should be submitting tool status reports aligned to your Phase 3 milestones. Those reports need to include steel procurement confirmation, machining completion percentage, EDM electrode status, texturing (if applicable), and T1 trial scheduling. A supplier that delivers weekly “everything is on track” email updates without milestone-tied deliverables is not managed; they are monitored passively. Those are different things, and the distinction shows up in Phase 4 timing.
Phase 4 validation, which includes engineering validation (EV), design validation (DV), and production validation (PV) builds, requires parts from production-intent tooling. A mold that arrives 4 weeks late from China compresses validation build time, which compresses your test schedule, which puts pressure on your launch date. One late T1 trial in China can push a North American SOP by 6 to 10 weeks when you account for the full downstream impact on validation and PPAP. Our project managers build dual-path contingency plans with Chinese suppliers for every automotive program we run to prevent that cascade.
Frequently Asked Questions
Does an IATF 16949-certified China mold shop automatically meet Tier-1 customer-specific requirements?
No. IATF 16949 certification confirms the shop’s quality management system meets the baseline standard. Customer-specific requirements from Tier-1 companies like Bosch, Magna, or Denso layer on top of that baseline and must be reviewed and accepted separately. Always send the CSR document to the supplier and get written acknowledgment before tool build authorization.
What PPAP level should I expect for a new injection mold built in China?
Level 3 is the default for new automotive tooling in most OEM and Tier-1 programs. Plan for the complete Level 3 documentation package to add 3 to 5 weeks after a successful T3 trial run. Confirm the level requirement with your customer quality contact in writing before the program kicks off, because changing from Level 2 to Level 3 mid-program adds cost and time.
How do I verify that a China mold supplier is actually using H13 steel and not a substitute?
Require the mill certificate at the time of steel purchase, not at mold delivery. Specify in your purchase order that mill certs must reference heat number, chemical composition, and mechanical properties traceable to Bohler, Uddeholm, ASSAB, or another approved mill. A portable XRF analyzer, either your own or a third-party inspection service in China, can verify alloy composition on the machined cavity and core steel before mold assembly.
Can a China-built mold be used for PPAP submission without a US mold trial?
Yes, but it depends on your customer’s requirements and whether the China tryout press matches the production press specifications in shot size, injection pressure capacity, and cooling configuration. Many OEM customer-specific requirements state that PPAP submission parts must be produced on the intended production equipment. Confirm this with your customer before running PPAP trials in China to avoid a rejected PSW.
What is a realistic total cost comparison for automotive mold sourcing from China versus domestic?
Based on our 2023 to 2024 program data, China tooling costs run 35% to 55% below domestic pricing for comparable automotive mold complexity and steel specification. A structural PA66 bracket tool that costs $38,000 from a qualified automotive mold manufacturer in China costs $95,000 to $110,000 from a comparable US toolroom. Freight, import duties under HTS Chapter 84, and the cost of one additional mold trial to address shipping-related adjustments typically add $4,000 to $9,000 to the China total cost.
Run your own numbers with our clamp force calculator and cost comparison tools before finalizing your sourcing decision. If you want our team to review your program requirements against qualified IATF-certified supplier candidates, visit our injection molding consulting services page to start that conversation.
