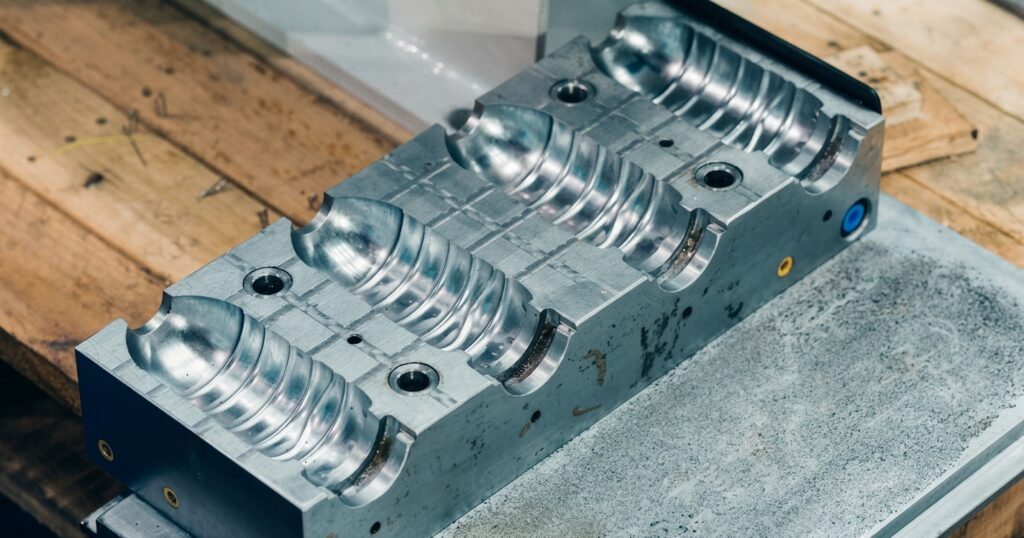

Bringing Molds Back from China: A Step-by-Step Repatriation Playbook

Bringing molds back from China is now a live decision for hundreds of US OEMs. The 2025 tariff structure pushed effective rates on Chinese tooling and molded parts past 45% in many HTS categories, turning a cost-neutral offshore program into a cash drain overnight. This playbook walks you through every phase of mold repatriation, from the first audit call to first-article approval at a domestic press.

When to Use This Playbook: The Pre-Game Assessment

Not every mold is worth repatriating. Before you commit to transferring molds from China, run a quick financial gate. Add up your landed part cost including the current tariff surcharge, then compare it to a domestic quote on the same annual volume. If the domestic unit cost is within 30% of the tariffed offshore cost, repatriation usually pencils out inside 18 months once you account for freight savings and reduced safety stock.

Also confirm mold ownership in China before you book a container. Mold ownership in China is governed by the contract you signed, not by who paid the tooling invoice. If your purchase order says the mold is your property but the supplier’s contract says otherwise, you need a lawyer familiar with Chinese commercial law before the mold leaves the building. We have seen two programs stall for four months on exactly this dispute.

Use this playbook when all three of the following are true:

• You legally own the mold per a signed, Chinese-law-governed contract or a supplier acknowledgment letter.
• Your tariff-adjusted landed cost has risen more than 20% above your domestic alternative quote.
• Annual volume justifies a domestic press commitment of at least 50,000 shots per year.

Play 1: The Mold Survey and Documentation Package

Before the mold ships, you need a complete documentation package. Most Chinese shops will provide this if you ask in writing and give them two to three weeks. If they resist, that is a red flag about the condition of the mold. Insist on receiving all of the following before the container is sealed.

• 2D mold drawings with parting line, gate locations, ejector layout, and cooling circuit routing, dimensioned in millimeters.
• 3D CAD files of the core and cavity in STEP format.
• Steel certification records showing material grade (P20, H13, S7, or 420SS depending on application) and heat treatment hardness in HRC.
• Shot count log. Per SPI mold classification 101, a Class 101 mold is rated to more than 1,000,000 cycles; a Class 103 is rated to 500,000. Knowing where your mold sits on that curve tells you what refurbishment to budget.
• Last known process parameters: melt temp, mold temp, injection speed profile, pack pressure, hold time, and cycle time in seconds.
• Any engineering change records dated after the original mold build.

If the shop cannot produce steel certs, assume P20 at 28 to 32 HRC until you can verify otherwise. That assumption affects your cooling and polishing decisions on the domestic side.

Play 2: Press Compatibility Check

Chinese tool shops build to metric dimensions. US presses run on inch-based platen bolt patterns in most shops, though newer machines from Engel, Husky, and Milacron are dual-standard. The mold survey data you collected in Play 1 feeds directly into this check.

Parameter	China-Built Mold (Typical)	US Press Requirement	Resolution
Locating ring diameter	100 mm or 120 mm	3.5 in (88.9 mm) or 4.0 in (101.6 mm)	Machine a new locating ring; cost under $200
Ejector pin pattern	Metric bolt circle	Inch bolt circle on older Milacron/Van Dorn	Adapter plate; $400 to $900 depending on tonnage
Cooling port threads	PT (tapered, JIS B0203)	NPT (tapered, ANSI B1.20.1)	Brass adapter fittings; $15 to $40 per port
Clamp slot width	Metric T-slot (varies)	Inch T-slot	Clamp strap set with metric-to-inch adapters; $150 to $350
Sprue bushing radius	SR15 or SR20 (mm)	0.75 in or 1.0 in radius	Replace sprue bushing; $80 to $250 per bushing

Clamp tonnage is the other hard check. Measure the projected part area including runner, multiply by your material’s injection pressure in psi, and divide by 2,000 to get required tonnage. For a commodity PP at 10,000 psi injection pressure over 18 square inches of projected area, you need 90 tons minimum. Do not run a 55-ton machine on that tool because it “fits.” You will flash parts and damage the parting line within 500 shots.

Play 3: Hot Runner and EOAT Adjustments

Hot runner systems are the single biggest headache in mold repatriation. Chinese shops frequently install Yudo, Incoe China, or generic no-name manifolds that use non-standard connector pinouts and proprietary zone wiring. Your US controller, whether it is a Mold-Masters Altanium or an Athena unit, will not talk to those connectors without an adapter harness or a full rewire.

Budget $1,200 to $4,500 for a hot runner audit and rewire on a 4 to 8 zone system. If the manifold itself is damaged or the heater cartridges have failed, a replacement manifold from a US-supported brand runs $6,000 to $18,000 depending on zone count and nozzle style. In our experience managing these transfers, a full manifold swap is needed on roughly 1 in 4 repatriated hot runner tools.

End-of-arm tooling (EOAT) built for a Chinese press’s tie-bar spacing and robot mounting standard (often KUKA or Yushin metric) will need dimensional adjustments for a US robot arm. Verify the take-out envelope, part drop path, and degating motion before you schedule the first sampling run. A mismatch here costs you a sampling day.

Play 4: Sampling the Mold at the New Press

First sampling at a domestic press after US production from a China-built mold is not a production run. Treat it as a mold qualification event. Our project managers schedule a minimum of two sampling days for any repatriated tool, with a structured shot log from shot 1 forward.

Start with a short-shot progression to map fill. Increase injection volume in 5% increments until you reach 95 to 97% fill without pack pressure. This tells you whether the gate size and runner balance survived the transfer intact. Gate vestige, warp, and sink are the three most common defects in the first 200 shots on a repatriated tool because the process window shifted when the cooling delta changed between the old shop and the new press.

Record cycle time carefully. The Chinese shop’s documented cycle time is your benchmark, but expect a 5 to 15% delta on first sampling due to differences in water temperature setpoint, chiller capacity, and clamp response time. A tool that ran a 28-second cycle in Shenzhen may need 31 to 33 seconds on the first domestic run. That is normal. Optimize from there, not from panic.

If you are running a semi-crystalline material such as nylon 66 or POM, confirm your mold temperature setpoint matches the Chinese process sheet. ISO 294-4 specifies shrinkage measurement protocols that your quality team should follow to revalidate dimensional output at the new press, because a 2 degree Celsius difference in mold temperature can shift linear shrinkage by 0.1 to 0.3% in glass-filled nylons.

Post-Game: What to Verify Before You Call the Mold Qualified

The post-game phase covers the 30 days after first successful sampling. This is where repatriation programs quietly fail because teams declare victory after a good-looking first-article and skip the verification work.

Run a full mold repatriation closure checklist before production release:

• First-article inspection (FAI) report against the original part drawing, with GD&T callouts measured on a CMM, not a manual mic.
• Mold temperature profile logged at steady state using thermocouple stickers or an IR camera. Confirm no hot spots above 20 degrees Fahrenheit over target on any cavity surface.
• Cooling circuit flow test at the domestic hookup. Target greater than 0.5 GPM per circuit for adequate turbulent flow (Reynolds number above 4,000). Low flow causes long cycle times and warpage.
• Ejector pin inspection. Chinese shops run tight ejector clearances of 0.0005 to 0.001 inch. If the domestic shop reamed the holes during a repair, confirm clearance is back in spec or you will get flash on pin faces.
• Documented process parameter sheet signed by the process engineer. This becomes the baseline for all future production and any future mold transfers.
• Spare parts inventory. Order at minimum two spare ejector pins per position, one spare sprue bushing, and one spare gate insert if the tool uses a replaceable gate. Lead time on Chinese-spec spare components from a US supplier runs 4 to 8 weeks.

One final item: update your mold maintenance schedule for US conditions. Chinese shops often run higher mold temperatures and less frequent preventive maintenance because labor is cheap and downtime is absorbed differently. A US shop running that same tool on a tight production schedule needs a PM interval set, typically every 50,000 to 100,000 shots for a P20 steel tool in a standard thermoplastic application.

Frequently Asked Questions

How long does mold repatriation typically take from decision to first domestic production shot?

Plan for 10 to 16 weeks total. That breaks down as 2 to 3 weeks for documentation and legal clearance, 3 to 5 weeks for ocean freight, 1 to 2 weeks for press compatibility work and any hot runner service, and 2 to 4 weeks for sampling and first-article approval. Air freight cuts transit to 1 week but costs $3,000 to $8,000 more depending on mold weight.

Who legally owns the mold if I paid for it in China?

Payment alone does not establish ownership under Chinese commercial law. Mold ownership in China is determined by the contract terms, not the invoice. You need a signed mold ownership letter from the supplier on company letterhead, or explicit language in your purchase order that is acknowledged in writing. Without this, export of the mold can be blocked at the port of origin.

Can I run a metric mold on an inch-standard US press without modifications?

In most cases, yes, with minor adapter hardware. The locating ring, ejector adapter plate, and cooling port fittings are the three items that almost always need attention, and total adapter cost is typically under $1,500. The bigger risk is hot runner wiring incompatibility, which requires a qualified hot runner technician, not just off-the-shelf adapters.

What is the most common reason repatriated molds fail first-article inspection?

Cooling performance mismatch is the leading cause, in our experience. The domestic chiller, water manifold setup, and line lengths differ from the Chinese shop, and the mold temperature runs 5 to 15 degrees Fahrenheit hotter than the process sheet target. That shift moves critical dimensions on semi-crystalline parts outside tolerance. Fix the cooling circuit flow and temperature before chasing steel modifications.

Should I retool domestically instead of repatriating an existing Chinese mold?

Run the numbers first. A repatriation with press compatibility work and sampling typically costs $8,000 to $25,000 total. A new domestic mold for the same part starts at $35,000 for a simple single-cavity Class 103 tool and runs to $120,000 or more for a multi-cavity hot runner tool. Unless the Chinese mold is heavily worn or documentation is missing, repatriation almost always wins on near-term cost. Use our injection molding consulting service to model the break-even on your specific program.
