Burn Marks in Injection Molding: Diesel Effect, Venting, and Gas Traps

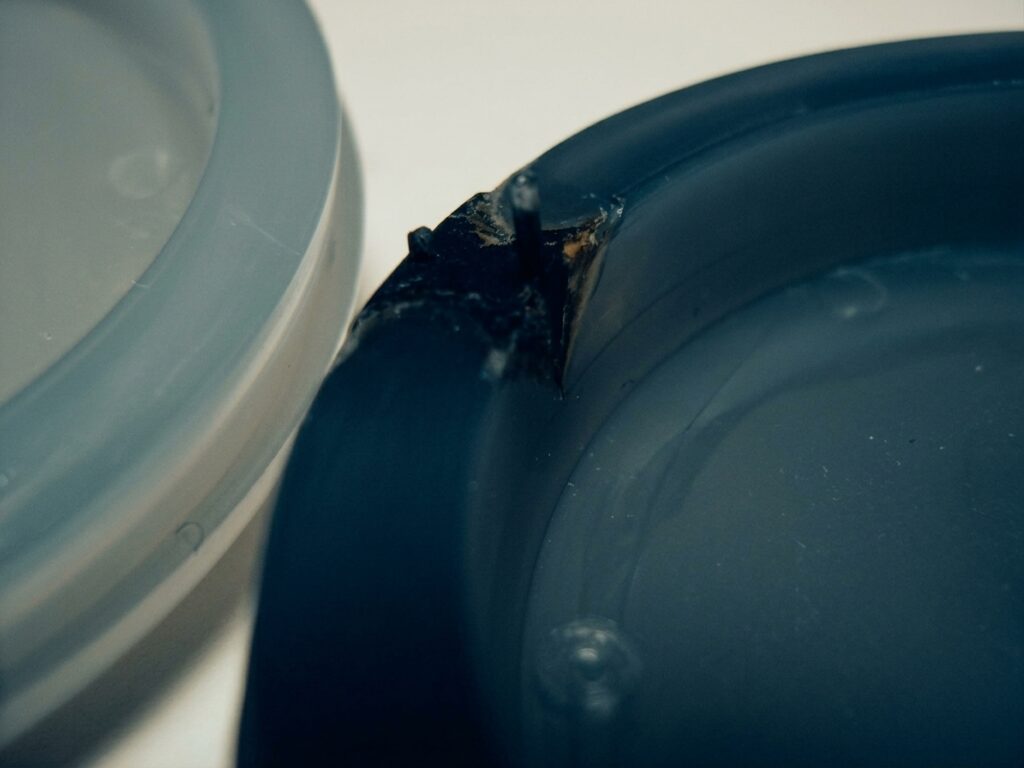

Burn marks in injection molding are almost always a gas problem, not a heat problem. The plastic itself rarely burns first. Trapped air compresses ahead of the melt front, heats to 600°F or above through the diesel effect, and scorches the part surface. In our experience, correcting venting alone resolves this defect in roughly 70% of cases without touching a processing parameter.

What Actually Causes Burn Marks: The Diesel Effect Explained

The diesel effect in injection molding is the same principle that fires a diesel engine. As the injection stroke pushes melt forward, it compresses residual air in the cavity. Boyle’s Law is not optional. A gas volume compressed from 1 atm to 200 atm in milliseconds generates temperatures that can exceed 1,000°F at the compression point.

At that temperature, most engineering thermoplastics degrade visibly. ABS starts to char around 500°F. Polycarbonate begins oxidizing around 570°F. Even glass-filled nylon, which tolerates high processing temperatures, will show brown or black discoloration when contacted by a 900°F gas pocket. The burn mark you see on the part surface is the char residue left by that compressed air column.

This is important: the melt temperature setting on your press did not cause this burn. You can drop barrel temperature 40°F and still get identical burn marks if the gas has nowhere to go. Chasing this defect by lowering melt temperature is the most common mistake we see on new tool buyoffs from offshore suppliers.

Diagnosing a Gas Trap on a Plastic Part

Before you change anything, map the defect location precisely. A gas trap on a plastic part almost always occurs at one of three predictable locations: the last-fill zone, a weld line intersection, or a blind feature like a boss or rib pocket. Short-shot the tool at 90%, 95%, and 98% fill. Photograph each shot. The burn mark appears at exactly the point the melt front stalls.

Compare that location against your fill simulation. If your supplier ran Moldflow or Moldex3D before cutting steel, the weld line and last-fill reports will show the gas trap location within a few millimeters. When the burn mark matches the simulation prediction, you have confirmed a design-driven gas trap. When it does not match, the problem is more likely a blocked or undersized vent.

Use this diagnostic checklist before calling your toolmaker:

• Record exact XY location of the burn mark on the part drawing.
• Run a short shot series and document fill progression in photos.
• Pull the mold and inspect vent land depth with a depth micrometer. Compare to spec.
• Check vent land width and vent relief depth against the steel supplier’s documentation.
• Verify ejector pin clearance. Pins are often the only venting at a boss tip.
• Review the fill simulation last-fill contour if one exists.

Vent Specifications That Actually Fix Burn Marks

A venting burn mark is fixable at the tool, and the fix is inexpensive compared to scrapping production runs. Standard vent land depth for most amorphous resins runs 0.0005 to 0.0015 inches (0.013 to 0.038 mm). For semi-crystalline resins like nylon or acetal, you can open that to 0.002 inches (0.051 mm) before you risk flash. These are not arbitrary numbers. They come from resin-specific viscosity data and are published in material processing guides from suppliers like BASF and DuPont.

The vent land should be no wider than 0.060 to 0.125 inches (1.5 to 3.2 mm). Behind that land, the vent relief opens to 0.010 to 0.020 inches (0.25 to 0.51 mm) to allow gas to escape to atmosphere. If your Chinese toolmaker has cut vents at 0.001 inches deep but with a 0.250-inch-wide land, the flow resistance is too high and gas cannot evacuate fast enough during the injection stroke.

The table below summarizes recommended vent depths by resin family:

Resin Family	Vent Land Depth (in)	Vent Land Depth (mm)	Max Land Width (in)
ABS / ABS-PC Blend	0.0005 to 0.0015	0.013 to 0.038	0.060
Polycarbonate (PC)	0.0005 to 0.0015	0.013 to 0.038	0.060
Nylon 6 / 6,6 (unfilled)	0.0005 to 0.0010	0.013 to 0.025	0.060
Glass-Filled Nylon (30%)	0.0010 to 0.0020	0.025 to 0.051	0.125
Polypropylene (PP)	0.0005 to 0.0010	0.013 to 0.025	0.060
Acetal (POM)	0.0005 to 0.0015	0.013 to 0.038	0.060
TPE / TPU	0.0003 to 0.0007	0.008 to 0.018	0.050

Vent location matters as much as depth. Place vents at the parting line wherever the last-fill zone falls. Add vents to ejector pins at boss tips by reducing pin diameter 0.0005 to 0.0010 inches relative to the hole, creating an annular vent. For deep blind features where parting line venting cannot reach, sintered steel vent inserts (porous steel) are a proven fix. We have used porous vent inserts in P20 tooling to resolve stubborn burn marks on boss towers 1.5 inches deep, where no other option was accessible.

Process Adjustments for Burn Fix in Injection Molding

Process changes are a secondary lever, not the primary fix. That said, when the tool is in production and rework is not scheduled for two weeks, these adjustments buy time. A burn fix in injection molding at the press starts with injection speed.

Reduce injection speed in the last 10 to 15% of fill stroke. Most modern presses allow velocity profiling. Set a velocity drop to 30 to 50% of peak fill speed in that final phase. This gives the trapped gas more time to escape through existing vents before the melt front seals the cavity. You will likely see a small increase in cycle time, perhaps 1 to 3 seconds, and you may need to compensate with higher pack pressure to maintain part dimensions.

Gate size also plays a role. An undersized gate raises shear rate at the gate, which raises local melt temperature and can contribute to surface discoloration near the gate that looks like a burn but is actually shear degradation. SPI mold classification standards recommend gate dimensions sized to achieve a shear rate below 50,000 reciprocal seconds for most commodity resins. If your edge gate is 0.040 inches thick on a 0.120-inch wall, you are almost certainly above that threshold. Open the gate to 0.060 to 0.080 inches and requalify.

Back pressure and screw RPM also matter. Excessive back pressure above 150 psi (hydraulic) combined with high screw speed above 100 RPM can overheat the melt in the barrel and introduce degraded material that burns on contact with the cavity surface, independent of the diesel effect. Check your melt temperature with a pyrometer at the nozzle. It should be within 10°F of the recommended processing temperature published by the resin supplier.

When the Fix Requires Steel Work

Some burn mark locations cannot be resolved with process adjustments or parting line venting. A gas trap at the tip of a 2-inch-deep core, a blind rib at 0.040-inch width, or a cavity zone surrounded by shut-off steel on all sides needs a tooling solution. These are the scenarios where you spend money on steel to stop spending money on scrap.

The most cost-effective tooling solutions, ranked by typical cost in a Chinese tool shop, are:

• Ejector pin vent: Add or relocate an ejector pin to the burn zone. Cost: $150 to $400 per pin location including fitment.
• Insert addition with venting: Machine a vented insert into the burn zone. Cost: $600 to $1,800 depending on geometry and steel grade (P20 vs. H13).
• Porous sintered vent insert: Press-fit sintered vent insert into a drilled pocket. Cost: $300 to $900 including insert and pocket machining.
• Gate relocation: Move or add a gate to change fill direction and shift the last-fill zone away from a cosmetic surface. Cost: $1,200 to $4,000 depending on hot runner involvement.
• Vacuum venting system: Evacuate the cavity before injection using a timed vacuum circuit. Cost: $4,000 to $12,000 for a full system on a single-cavity tool.

Compare those numbers to the cost of running scrap. At a typical offshore production run of 50,000 parts per year, with a 4% burn mark reject rate and a part cost of $1.20, you are discarding $2,400 per year in finished parts before accounting for inspection labor and rework. A $600 vent insert pays back in under four months.

Frequently Asked Questions

What is the diesel effect in injection molding?

The diesel effect in injection molding occurs when advancing melt compresses trapped air faster than it can escape through vents. The compressed air heats to temperatures above 600°F, sometimes exceeding 1,000°F, and chars the plastic at the last-fill zone. The name comes from diesel engine combustion, where fuel ignites from compression heat alone, with no spark required.

How do I tell if my burn mark is from the diesel effect or shear degradation?

Location is your first clue. Diesel effect burns appear at the last-fill zone, typically far from the gate. Shear degradation burns appear at or very near the gate, sometimes streaking downstream. Run a short-shot series to confirm fill order, then compare the burn location to the fill front position. If the burn appears at the final fill location, it is almost certainly a venting burn mark from gas compression.

Can I fix a burn mark by lowering barrel temperature?

Lowering barrel temperature rarely fixes a diesel effect burn and can introduce short shots, weld line weakness, or increased fill pressure. It may reduce the severity of shear degradation burns near the gate. Address the root cause first: verify vents are open to spec, reduce injection speed in the last 15% of stroke, and confirm vent locations match the last-fill zone from your fill simulation.

How deep should vents be for ABS?

For ABS and ABS-PC blends, vent land depth should run 0.0005 to 0.0015 inches (0.013 to 0.038 mm) with a land width no greater than 0.060 inches. Behind the land, open the vent relief to at least 0.010 inches. Tighter than 0.0005 inches and the vent is functionally closed. Deeper than 0.0020 inches and you risk flash at the parting line.

What steel grade should vent inserts be made from?

For most applications, P20 pre-hardened tool steel at 30 to 36 HRC is adequate for vent inserts in moderate-volume tools. For glass-filled or abrasive resins, specify H13 hardened to 48 to 52 HRC to resist erosion at the vent land. If you are running 420SS in a corrosive resin application like PVC, match the vent insert material to the surrounding cavity steel to avoid galvanic differential wear at the interface.
