China Injection Molding Quality Control: The 7-Stage Inspection Protocol We Run

China injection molding quality control fails most programs at the same three points: T0 trial review, first article inspection, and pre-shipment AQL. We have run this 7-stage protocol across more than 200 offshore tools since 2011, and programs that follow all seven stages see a field reject rate below 0.4%. Programs that skip stages two and five average closer to 6.2% field rejects. Here is exactly what we do.

Why a Structured Protocol Matters More Than Supplier Selection

Most procurement managers assume that picking a top-tier Chinese moldmaker solves the quality problem. It does not. Even ISO-certified shops in Dongguan and Kunshan ship dimensional non-conformances when there is no formal gate between trial and production approval. The protocol replaces assumptions with data at each handoff.

The cost difference is concrete. A field recall on a 50,000-piece run of a PA66-GF30 structural component costs your program an average of $38,000 in sort labor, expedited freight, and customer chargebacks. The full 7-stage protocol adds roughly $4,200 to your tooling project cost. That math is straightforward.

SPI mold standards, specifically the SPI mold classification system (101 through 105), define expected tool life and steel requirements but say nothing about production part validation. Your quality protocol fills that gap. Knowing your tool is built to 101-spec in H13 cavity steel is not the same as knowing your parts meet drawing.

Stage 1: Design for Inspection (Pre-Build Kickoff)

Before steel cuts, your team and the moldmaker must agree on three things: the Critical-to-Function (CTF) dimension list, the cosmetic acceptance standard, and the material certification requirements. Without this agreement documented, every downstream inspection is subjective.

We require a signed CTF list that calls out no more than 20 dimensions per part, each with its nominal, bilateral tolerance, and measurement method. For a typical consumer electronics housing in PC-ABS, that list includes wall thickness at six locations (typically 2.0mm plus or minus 0.10mm), snap-fit engagement depth (plus or minus 0.05mm), and parting line step height (maximum 0.10mm per ISO 20457).

Material certifications must be in hand before T0. That means a mill cert for the cavity steel (H13 or P20 depending on classification), a resin lot cert showing MFI and moisture content, and a colorant batch cert if the part is colored. A missing resin cert at T0 has burned four weeks on programs we inherited from other consultants.

• Signed CTF dimension list with tolerances and measurement method
• Cosmetic standard with approved limit samples or a written AQL table (typically AQL 1.0 for critical cosmetics, AQL 2.5 for minor)
• Steel cert for cavity and core material
• Resin lot cert with MFI, moisture content, and lot number
• Gate location and runner layout approval on 2D drawing

Stage 2: T0 Trial Audit and Short-Shot Progression

T0 is the first steel shot. It is a diagnostic run, not an approval run. We require the moldmaker to submit a T0 trial report within 48 hours of the first shot. That report must include photos of short-shots at 60%, 75%, and 90% fill to document flow front progression, a full-cavity weight log (minimum 10 consecutive shots at stable process), and flash observation notes at the parting line and all shut-offs.

The common failure at T0 is the moldmaker skipping the short-shot sequence and running straight to full parts. This hides knit lines, gas traps, and hesitation marks that only appear during fill. When we get a T0 report with no short-shot photos, we send it back and schedule a video call to walk through the sequence in real time.

T0 is not a dimensional checkpoint. The tool is not expected to be in tolerance at T0. It is an alignment check on steel condition, cooling circuit flow rates, and basic processability. We verify cooling flow at a minimum of 0.5 GPM per circuit using a simple rotameter check logged by the toolmaker on the shop floor.

T0 Check Item	Acceptance Criteria	Common Failure Mode
Short-shot progression photos	Three fill stages documented (60, 75, 90%)	Submitted as full shots only
Cavity weight consistency	Cpk greater than or equal to 1.0 on shot weight over 10 shots	Gate freeze not established; wide weight scatter
Cooling circuit flow rate	Greater than or equal to 0.5 GPM per circuit	Partially blocked circuits from EDM debris
Ejector pin witness marks	Below 0.05mm surface deviation	Pins too long; sinks on A-side visible
Parting line flash	Zero flash visible at 10x magnification	Insufficient clamp tonnage; try minimum 2.5 tons per square inch of projected area

Stage 3: T1 Dimensional Layout and FAI China Mold Submission

T1 is the first fully corrected trial. This is where the FAI china mold package begins. A proper First Article Inspection requires 100% of CTF dimensions measured on five parts from each cavity, reported on a balloon-checked drawing, with GD&T callouts measured using a CMM or calibrated optical comparator. Not calipers. Not a flexible tape. Calibrated metrology equipment with a current calibration certificate.

We use a standardized FAI report template that maps to AIAG PPAP 4th Edition requirements even when the customer has not formally requested a PPAP offshore tooling submission. The reason is simple: if you ever need to move the tool to a US-based molder or qualify a second source, you already have the documentation. Rebuilding a FAI from scratch costs $3,500 to $7,000 in metrology time alone.

At T1 we also run the first full cosmetic audit on a sample of 32 parts. We evaluate sink marks, weld lines, gloss variation, color match against a reference plaque, and gate vestige height. Gate vestige on a fan gate should be no taller than 0.40mm above the part surface for most consumer applications. Sub-gate vestige should be flush, plus or minus 0.10mm.

What Goes Into the FAI Package

• Balloon-checked 2D drawing with revision level
• CMM or optical comparator data for all CTF dimensions, five parts per cavity
• Material certification cross-referenced to the lot used during trial
• Process parameter sheet (injection speed, hold pressure, melt temp, mold temp, cycle time)
• Cosmetic inspection report with AQL sampling plan
• Mold flow correlation overlay if a simulation was run during design

Stage 4: T2 Process Window Study and PPAP Offshore Tooling Package

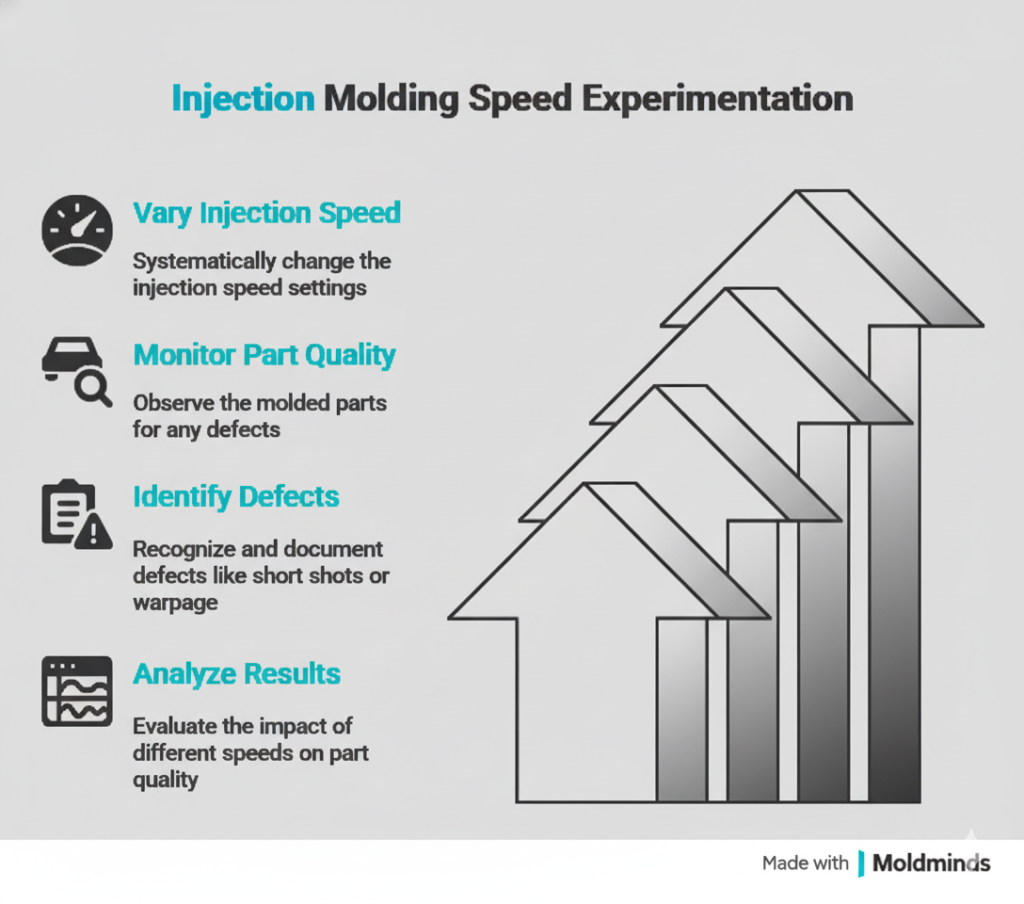

T2 exists to confirm the process is, not just capable at nominal settings. We run a basic process window study: hold melt temperature constant, vary injection speed plus or minus 20% from nominal, and vary hold pressure plus or minus 15%. The goal is to confirm that all CTF dimensions stay within tolerance across that window. If a dimension drops out of tolerance with a 10% speed change, your process is fragile and your production reject rate will be unpredictable.

This is also where we formally compile the PPAP offshore tooling submission if required by your customer. A Level 3 PPAP includes the full FAI dimensional data, the process window study results, the MSA (gauge R&R) on your CTF measurement methods, the control plan, and the FMEA. We have seen US OEMs waive PPAP for offshore tools and then face a Tier 1 audit 18 months later with zero documentation. Do not waive it.

Cycle time is locked at T2. For a typical 4-cavity ABS housing in a class 101 tool running in a 180-ton press, we target a 28-second cycle: 3-second fill, 18-second hold and cooling, 4-second open and eject, 3-second reset. Any cycle time faster than this target that still passes dimensional should be validated over a 500-piece pilot run before locking, because thermal steady state takes longer to establish than most moldmakers want to admit.

Stage 5: Injection Mold Quality Inspection China, Pre-Production Run

Before any production order ships, we require a witnessed or third-party audited pre-production run. This is the stage most offshore programs skip, and it is the single biggest predictor of field problems. The pre-production run is 300 to 500 pieces at locked process parameters, audited for dimensional compliance, cosmetic AQL, and packaging integrity.

For the injection mold quality inspection china portion, we deploy either a resident engineer at the Chinese facility or a contracted third-party inspection service (SGS, Bureau Veritas, or Intertek are the services we use most frequently). The inspector witnesses the startup sequence, documents the first 10 shots and the last 10 shots, pulls a random sample mid-run, and completes the full AQL table. AQL 2.5 for major defects, AQL 4.0 for minor defects, on a sample size determined by ANSI/ASQ Z1.4 Table II-A for the lot size.

Packaging inspection runs in parallel. Incorrect packaging crushes parts in transit from Shenzhen to your dock. We specify part orientation, interleave tissue or foam requirements, box stack height limits, and desiccant requirements for hygroscopic materials like nylon or POM. A $0.08 per-unit packaging spec saves your team from sorting 12,000 cosmetically damaged parts on arrival.

Defect Category	AQL Level	Sample Size (1,000-piece lot per ANSI/ASQ Z1.4)	Accept / Reject Number
Critical (functional failure)	0.65	80	0 / 1
Major (cosmetic or fit failure)	2.5	80	5 / 6
Minor (appearance deviation)	4.0	80	7 / 8

Stage 6: First Production Shipment Inspection and Dock Audit

When the first full production order is ready to ship, we run a pre-shipment inspection (PSI) before the freight forwarder picks up the goods. This is not the same as the pre-production run audit. The PSI covers the finished, packed, and palletized goods. We check carton count, carton labeling against your purchase order, pallet configuration, and pull a random sample for a final AQL dimensional and cosmetic check.

This stage also confirms that the mold is properly stored in the Chinese facility if it stays there between production runs. We require photographic evidence of the mold cleaned, greased on all core and cavity surfaces with a rust inhibitor (typically VCI paper or a spray like Cosmoline), ejector pins retracted, and the mold stored in a closed, climate-controlled bay. Mold corrosion from improper storage is one of the top five reasons for dimensional drift on repeat production orders, particularly on P20 tooling in humid coastal regions of Guangdong province.

Stage 7: Ongoing Production Control and SPI Mold Standards Compliance

Quality does not stop at first shipment. For any tool running more than four production orders per year, we implement a periodic re-qualification schedule. Every 50,000 shots on a class 103 tool or every 250,000 shots on a class 101 tool, the moldmaker pulls a 30-piece sample and submits a dimensional report against the original FAI layout. Deviation beyond 50% of the original tolerance band triggers a steel inspection and process review.

SPI mold standards define class 101 tools as rated for greater than 1,000,000 cycles with hardened steel (HRC 48-52 minimum for H13 cavities). Tracking cumulative shot count is your responsibility as the mold owner, not the moldmaker’s. We build shot counters into every new tool specification we write and require the moldmaker to report the counter reading with each production order completion.

We also track the process parameter sheet against the T2-locked baseline on every production order. Melt temperature creeping up by 20 degrees Celsius to compensate for a degrading hot runner thermocouple is a process drift that your incoming inspection will not catch until the CTF dimensions shift. Parameter compliance is quality control. Dimensional inspection confirms it, but it does not replace it.

Frequently Asked Questions

How long does the full 7-stage protocol take from T0 to production release?

For a straightforward single-cavity or 2-cavity tool on a medium-complexity part, plan for 10 to 12 weeks from first steel shot to production shipment authorization. Multi-cavity family tools with complex geometry typically run 14 to 16 weeks. Skipping T2 or the pre-production run buys you 2 weeks and usually costs you 6 weeks in corrective action later.

Does every offshore mold program need a formal PPAP submission?

Not every customer requires it, but we recommend building the documentation even when it is not formally required. The PPAP offshore tooling package gives you a complete baseline record that supports second-source qualification, legal defense in a product liability situation, and internal engineering change management. The cost to produce it during active tooling development is roughly one-third the cost of reconstructing it later.

What is the difference between a T0, T1, and T2 trial, and can we combine them?

T0 is steel qualification. T1 is dimensional and cosmetic qualification. T2 is process window and production robustness qualification. Combining T0 and T1 is acceptable when the mold design is a proven duplicate of an existing tool. Combining T1 and T2 adds risk and is only justified under schedule pressure with a highly experienced moldmaker who has run the same part geometry before. We do not recommend combining all three.

How do we handle cosmetic standards when our customer has not given us a formal spec?

You write your own before T1. At minimum, define the viewing distance (typically 450mm), the lighting condition (diffuse fluorescent or equivalent), the inspection angle, and which side of the part is the A-surface. Without a written standard, every cosmetic rejection is a negotiation rather than a pass or fail. We provide a one-page cosmetic standard template through our injection molding consulting service that covers 90% of consumer and industrial applications.

What third-party inspection services do you use for the pre-production and pre-shipment stages?

For most programs in Guangdong, Zhejiang, and Jiangsu provinces, we use SGS or Intertek for pre-shipment inspections because of their local office density and turnaround time (typically 48 to 72 hours from inspection to final report). For dimensional audits requiring CMM capability, we use contracted metrology labs in Shenzhen and Ningbo that we have vetted for calibration traceability to NIST-equivalent Chinese national standards (CNAS accreditation). Our project managers can connect your team with these resources directly through our offshore tooling management service page.
