Hot Runner vs Cold Runner Systems: Cost, Performance, and When to Choose Each

The hot runner vs cold runner decision can swing your tooling budget by $15,000 to $40,000 upfront and your per-part cost by 8% to 22% over a program’s life. Choose a cold runner on a high-volume job and you leave real money on the table. Choose a hot runner on a low-volume job and you never break even. Here is how to pick correctly.

What Each System Actually Does

A cold runner system delivers molten resin from the sprue through unheated channels machined into the mold parting line. The plastic in those channels freezes with every shot and is either scrapped or reground. The tooling is simpler, the steel is cheaper, and the logic is straightforward.

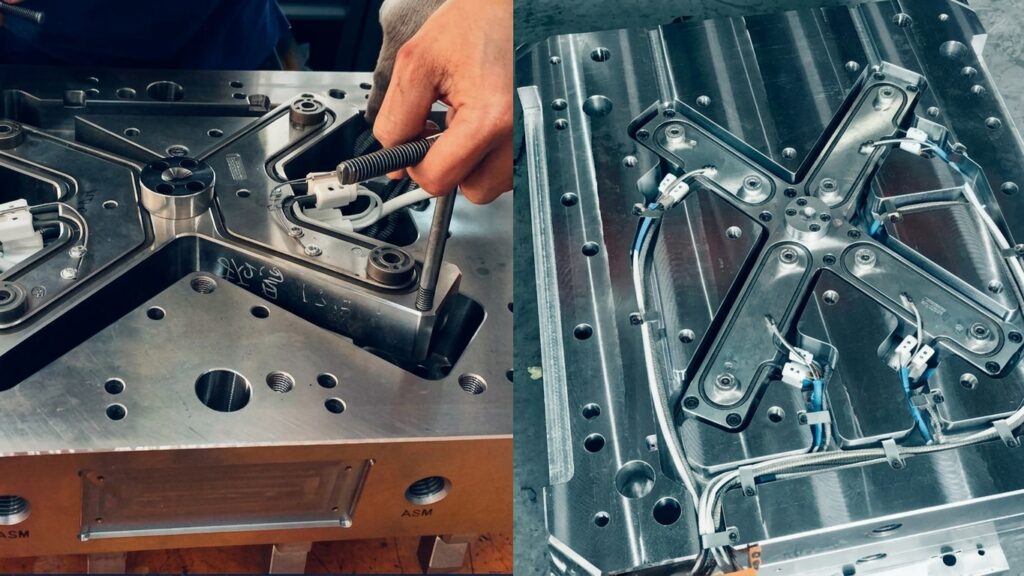

A hot runner system keeps the resin in the runner manifold at melt temperature between shots. No runner solidifies. No runner gets ejected. The gate drops directly into the part geometry or into a small vestige, depending on gate style. The manifold and nozzle assembly is a heated precision component, not just a channel cut in steel.

Both systems work. The question is which one works for your production volume, your resin, your part geometry, and your quality requirements.

Upfront Cost Delta

This is where most programs stall. A well-built single-cavity cold runner mold in P20 prehardened steel, sourced from a vetted Chinese shop, runs $8,000 to $18,000 depending on complexity. Add a quality hot runner system from Husky, Mold-Masters, or YUDO and you add $12,000 to $45,000 to that bill before you discuss the rest of the mold.

Cost Element	Cold Runner	Hot Runner
Mold base and steel (P20, single cavity)	$8,000 to $18,000	$8,000 to $18,000
Runner system hardware	$0 (machined channels)	$12,000 to $45,000
Controller and wiring	$0	$1,500 to $4,000
Total tooling budget (single cavity)	$8,000 to $18,000	$21,500 to $67,000
Multi-cavity multiplier (8 cavities, typical)	$22,000 to $55,000	$45,000 to $110,000

The gap looks brutal until you run the part-level math. On an 8-cavity cold runner tool running ABS at 4% shrinkage, your runner weight might equal 30% to 50% of total shot weight. That regrind eats into resin cost, part quality, and machine efficiency simultaneously.

Cycle Time and Material Savings

Cold runners require cooling time for the runner, not just the part. On a part with a 20-second cycle, a thick cold runner might add 4 to 8 seconds per shot just to reach ejection temperature. A hot runner system eliminates that entirely. That 4 to 8 second reduction compresses cycle time by 20% to 40% on many programs.

Material savings depend on runner-to-part weight ratio. If your cold runner weighs 18 grams and your part weighs 35 grams, you are consuming 51% extra resin per cycle just to feed the part. Even with regrind recovery, you face resin degradation, color contamination risk, and additional handling labor. Engineering-grade resins like 30% glass-filled nylon (PA6-GF30) degrade measurably after one regrind pass. Reground PC loses impact resistance. These are not theoretical concerns.

Our team ran a comparison on a 16-cavity PP closure tool sourcing 2 million parts per year. The cold runner version consumed 0.9 kg of runner material per thousand parts. At $1.40/kg for commodity PP, that is $1,260 in annual resin waste before labor. Modest numbers for PP. Run the same math on Ultem or PEEK and the waste cost dominates the conversation.

Hot Runner vs Cold Runner: Quality and Process Consistency

Gate location and gate quality are where hot runner systems justify their cost on precision parts. A valve gate hot runner drops a 0.8 mm to 1.5 mm gate mark on the part surface with no vestige from a cold runner nub. SPI gate vestige standards allow up to 0.76 mm of protrusion for cold runner pinpoint gates. Hot valve gates routinely hold gate flush to within 0.05 mm of the part surface.

Balancing flow across multiple cavities is more controllable with a hot runner system. A naturally balanced cold runner requires a Melt-Flipper or a geometrically balanced layout. A hot runner manifold with individual zone temperature control lets you trim fill rate cavity by cavity. For 8-cavity or 16-cavity tools running tight-tolerance parts, this matters.

Color changes are faster on hot runner tools with open gates and significantly harder on hot runner tools with valve gates. If you run 15 color changes per week, factor that labor into your operating cost model. Cold runner systems flush color in 10 to 20 shots. A valve gate hot runner may take 80 to 150 shots to purge completely, depending on manifold volume and resin viscosity.

Maintenance, Failure Modes, and Offshore Risk

Cold runner molds fail in predictable ways. Broken ejector pins, worn parting surfaces, gate erosion. All of these are field-repairable with standard toolroom equipment. Your mold tech can fix a broken ejector pin on the plant floor in 45 minutes.

Hot runner systems fail in ways that require specific knowledge. A shorted heater band in a manifold zone at 2 AM is not a quick fix. Thermocouple failures cause localized freeze-off or overheating, either of which generates scrap and possible mold damage. Tip wear on open-gate nozzles running glass-filled resins typically requires tip replacement every 500,000 to 1,000,000 shots, depending on fill percentage and tip material. H13 tips outlast P20 tips by a factor of 3 to 4 in abrasive applications. Specify accordingly when you write your tool spec.

When you source a hot runner mold offshore, the maintenance equation changes. In our shops, we specify Mold-Masters or YUDO components precisely because US-based spare parts inventories exist for both. A proprietary Chinese hot runner brand with no US distributor means a 6-week lead time on a replacement nozzle tip. That cost does not show up in the tooling quote. It shows up in your first production crisis.

When to Use Hot Runner: Break-Even Volume Analysis

The break-even volume calculation is the only honest way to settle this. You need four numbers: the upfront cost delta between hot and cold runner tooling, the cycle time savings per shot, the machine hourly rate, and the material savings per shot.

A simplified model for a typical program looks like this. Assume a $25,000 hot runner premium, a 6-second cycle time reduction on a 35-second cold runner cycle (17% improvement), a $95/hour press rate, and $0.012 per part material savings. At 3,600 parts per hour on the cold runner and 4,300 parts per hour on the hot runner, the operating cost advantage of the hot runner system is roughly $0.019 per part combined. You need 1.32 million parts to recover the $25,000 premium. At 500,000 parts per year, break-even arrives around 2.6 years into the program.

That math shifts fast with higher-cost resins, more cavities, or tighter cycle time differentials. For programs above 2 million parts per year with engineering resins, the hot runner cost premium is almost always recovered before the mold reaches 25% of its rated cycle life. For programs under 250,000 parts per year, a cold runner system is nearly always the correct answer unless gate quality or part geometry makes it impossible.

Annual Volume	Recommended System	Primary Driver
Under 100,000 parts/year	Cold runner	Never breaks even on HR premium
100,000 to 500,000 parts/year	Cold runner, evaluate case by case	Break-even beyond 3 years in most scenarios
500,000 to 2,000,000 parts/year	Hot runner if resin cost is above $2.00/kg	Material and cycle time savings drive ROI
Above 2,000,000 parts/year	Hot runner	Cold runner operating cost exceeds HR premium quickly

Gate aesthetics, part geometry, and resin sensitivity can override these volume thresholds in either direction. A medical device part requiring a gate flush to the surface at 50,000 pieces per year may justify a hot runner regardless of volume. A high-cavitation commodity packaging tool at 10 million parts per year almost certainly uses hot runners regardless of resin cost.

Frequently Asked Questions

What is the typical hot runner cost premium for an offshore mold?

For a single-cavity mold sourced from a vetted Chinese toolmaker, the hot runner cost premium runs $12,000 to $45,000 for the manifold and nozzle assembly alone, plus $1,500 to $4,000 for the controller. Multi-cavity tools scale by zone count, not linearly by cavity count, so an 8-cavity hot runner manifold does not cost 8 times a single-drop unit. Expect a 2.5x to 4x multiplier on the manifold cost for an 8-cavity versus a single-cavity configuration.

Can you convert a cold runner mold to a hot runner system later?

Sometimes, but it requires machining out the existing runner channels, fitting an insert pocket for the manifold, and addressing the changed gate location geometry. If the original mold was designed with conversion in mind, the cost runs $8,000 to $20,000. If it was not designed for conversion, you may be looking at a new mold. Plan the decision at the design stage, not after tooling is cut.

What resins are problematic in hot runner systems?

Heat-sensitive resins like PVC, POM (acetal), and certain flame-retardant grades degrade quickly if residence time in a hot manifold is excessive. Color-critical applications with frequent color changes are also difficult to manage in valve gate configurations. Glass-filled resins above 30% fill accelerate tip wear significantly and require H13 or hardened tool steel tips, not standard grades.

How do hot runner and cold runner systems affect part warpage?

Hot runner systems allow more precise control over pack pressure and gate freeze timing, which can reduce warpage on thin-wall parts. Cold runner systems introduce a pressure drop through the runner that can cause fill imbalances in multi-cavity tools, contributing to warpage variation cavity to cavity. The effect is most pronounced on semi-crystalline resins like PP, nylon, and POM where shrinkage anisotropy is high.

When should I use a hot runner system on a low-volume program?

When to use hot runner on a low-volume program depends on part requirements more than economics. If your part has a cosmetic gate surface, tight dimensional tolerance at the gate area, or uses a resin that cannot be reground, a hot runner system may be necessary below the normal break-even volume. Document the technical justification clearly when you present the tooling budget to procurement.
