The Short Answer
Injection mold base standards are the dimensional and material specifications that define a mold’s supporting plates, pins, and frame. Standard systems such as DME, Hasco, Meusburger, and Futaba set plate sizes, hole patterns, and steel grades so tools stay interchangeable and repairable. SPI mold classes then match the construction to your production volume.
The mold base is the frame that holds everything else. Buyers spend hours on cavity design and almost none on the base, then pay for it later when a plate cracks and no shop stocks a match. This guide covers the major standards, the steel that goes into them, and how to specify a base that any shop can maintain.
What is an injection mold base?

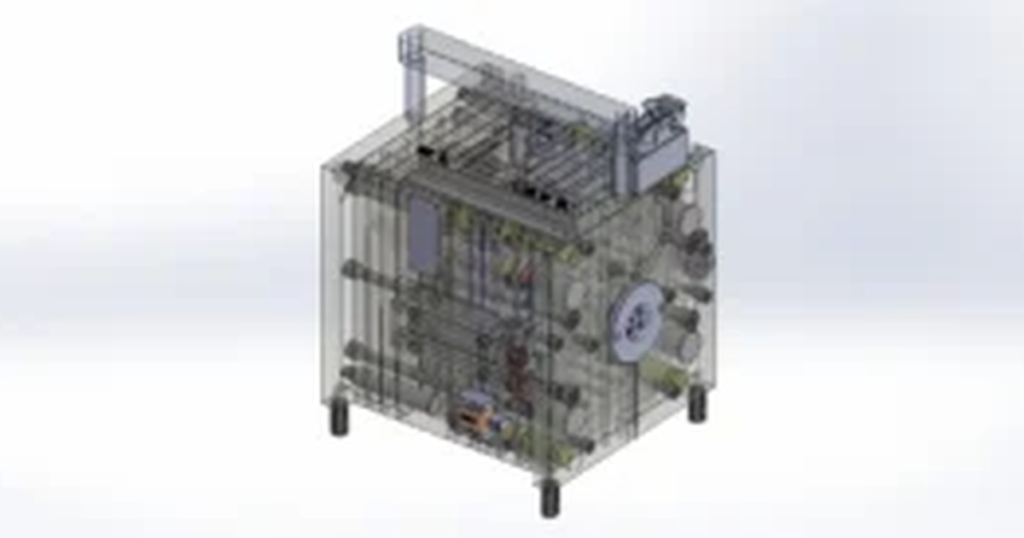

An injection mold base is the stack of steel plates and guide components that support the cavity and core, align the two mold halves, and mount the tool in the press. It is the skeleton. The cavity and core do the shaping, but the base carries the load, guides the open and close motion, and houses the ejection system.
A typical base includes a top clamp plate, the A plate that holds the cavity, the B plate that holds the core, a support plate, an ejector housing with ejector plates, and a bottom clamp plate. Guide pins, leader pins, bushings, and return pins tie the halves together and keep them in line shot after shot. When these parts follow a published standard, any qualified shop can order a replacement without reverse engineering your tool.
What are the main mold base standard systems?
The main mold base standard systems are DME, Hasco, Meusburger, Futaba, and Progressive Components. Each publishes a catalog of stock plate sizes, hole patterns, and component dimensions. Picking one system up front means spare plates and pins are on a shelf somewhere near your shop instead of on a custom machining queue.
| Standard system | Origin | Sizing | Common use |
|---|---|---|---|
| DME | North America | Imperial | Widely stocked in United States shops, the default for many domestic molders |
| Hasco | Europe | Metric | Modular components, common across European tool rooms |
| Meusburger | Europe | Metric | Tight tolerance stock plates, fast delivery in Europe |
| Futaba | Japan | Metric | Standard across many Asian mold makers, common on offshore tools |
| Progressive Components | North America | Both | Interchangeable components and standards that layer onto other bases |
The practical rule is to match the standard to where the mold will live and get repaired. A tool built and maintained in the United States runs best on DME because plates and pins are close by. A tool built overseas often arrives on a Futaba base, which is fine as long as your maintenance shop can source metric replacements. Problems start when a domestic shop inherits a metric offshore base and has to machine every spare from scratch.
What steel grades go into a standard mold base?
Standard mold base plates are commonly made from 1045 mild steel for clamp and backing plates and P20 prehardened steel at roughly 28 to 32 HRC for the A and B plates that carry the cavity and core, per common tool steel datasheets. Higher wear areas move up to hardened grades. The steel choice drives both tool life and price, so it belongs on the quote sheet, not buried in a drawing note.
| Grade | Typical hardness | Where it is used |
|---|---|---|
| 1045 | Around 10 to 20 HRC as supplied | Clamp plates, support plates, backing plates |
| P20 | About 28 to 32 HRC prehardened | A and B plates, cavities for medium production |
| H13 | About 44 to 52 HRC after heat treat | High wear inserts, high volume cavities and cores |
| 420 stainless | About 48 to 52 HRC after heat treat | Corrosion resistant cavities, molds running corrosive resins |
Hardness numbers here follow published steel datasheet ranges and vary with the exact supplier heat and treatment. The point for a buyer is simple. Prehardened P20 gets machined to final shape without a hardening step, which shortens lead time and suits most programs. Fully hardened H13 lasts longer under abrasive glass filled resins but costs more to cut and rework. Ask which grade sits in each plate before you approve a base, because a soft cavity in a high volume tool will wash out and cost you a rebuild.
Standard versus custom mold base: which should you specify?
You should specify a standard mold base for most tools and reserve a custom base for parts that break the standard envelope. A standard base is cheaper, faster to source, and easier to repair anywhere. A custom base is only worth it when the part or the process forces it.
- Choose a standard base when your part fits inside a catalog plate size and uses conventional ejection. This covers the large majority of single and multicavity tools.
- Choose a custom base when the part footprint exceeds the largest stock plate, or when a large multicavity layout needs a frame beyond catalog dimensions.
- Choose custom when the tool needs extra plates for slides, lifters, or a stripper stack that a stock base cannot house.
- Choose custom for unusual ejection, such as two stage ejection or a hydraulic core pull that changes the plate arrangement.
- When in doubt, start with a standard frame and add custom features only where the part demands. That keeps most of the base sourceable off the shelf.
Based on MoldMinds experience reviewing offshore quotes, the most common mistake is accepting a fully custom base when a standard one would have worked. It looks fine on day one. It becomes a problem two years later when a plate needs replacing and the drawing is the only record of a dimension that no catalog carries.
How do SPI mold classes affect mold base selection?
SPI mold classes rate a tool by expected production life, and that rating drives how much steel and precision the base needs. Per the SPI mold classification, the classes run from short life prototype tools to molds built for over a million cycles. The higher the class, the harder the steel and the tighter the base tolerances you should order.
| SPI class | Rated production life | Base and steel implication |
|---|---|---|
| Class 101 | Over 1,000,000 cycles | Hardened base, hardened cavities and cores, tight tolerances |
| Class 102 | Up to 1,000,000 cycles | Prehardened to hardened, medium to high production build |
| Class 103 | Up to 500,000 cycles | Prehardened P20 base, the common medium run standard |
| Class 104 | Up to 100,000 cycles | Prehardened or mild steel, lighter construction |
| Class 105 | Under 500 cycles | Prototype grade, aluminum or soft steel acceptable |
Cycle counts here are the SPI classification thresholds. Match the class to your real forecast, not your best case. If you quote a Class 104 base and the program runs a million parts, the tool will wear early and part quality will drift. If you overbuild a Class 101 base for a run of fifty thousand, you pay for hardened steel you never use. The class you write on the purchase order is the single biggest lever on base cost and tool life.
How do you specify a mold base for offshore tooling?
You specify a mold base for offshore tooling by writing the standard system, steel grades, and SPI class into the purchase order and confirming your maintenance shop can source that system. Offshore tools often arrive on metric Futaba or house standard bases. That is workable, but only if you plan for repairs before the tool ships, not after a plate fails.
Set three things in writing. Name the base standard so spare plates and pins are catalog items. Call out the steel grade for each plate group with a hardness range from the datasheet. State the SPI class so the shop builds to the right life. Then require the mold maker to supply full base drawings and a steel certification with the tool. Without that paperwork, a base built overseas becomes a mystery frame that only its original shop can service.
This is where United States based oversight pays for itself. Managing an offshore program well means catching a soft cavity or an undocumented base before the tool crosses an ocean, when a change still costs a phone call instead of a shipping container. Our injection molding tooling project management service exists to review base specifications, steel certs, and qualification trials so you own a tool any shop can maintain. For teams sourcing overseas, our offshore tooling services add the same technical checks across the whole build. If you are still choosing a partner, our guide to vetting a China mold maker covers the audit questions that surface base and steel shortcuts early.
MoldMinds carries no referral arrangements with any mold base maker, steel supplier, or shop. The specification you get is the one your part needs, not the one that pays a commission. That independence is the whole point of technical oversight.
The bottom line on mold base standards
A mold base standard is not paperwork for its own sake. It is what lets any shop repair your tool without reverse engineering it. Pick a recognized system, match the steel and SPI class to your real production volume, and demand full documentation with every tool. Do that up front and you protect the tool for its entire life instead of paying for the shortcut later.
About the author. Brandon Henderson is a certified journeyman mold maker and global tooling engineer with 15 years in plastics. As a toolroom manager he managed tooling programs for brands including Hershey’s and Clorox, and now provides US based technical oversight for offshore injection mold sourcing.
