Injection Mold Cavity Count: How to Choose and Maximize ROI

The right injection mold cavity count determines whether your program breaks even at 50,000 parts or 500,000 parts. Get it wrong and you either overbuild a tool you’ll never amortize or underbuild one that forces a second mold purchase 18 months later. This guide gives you the math to pick the right number before you cut steel.

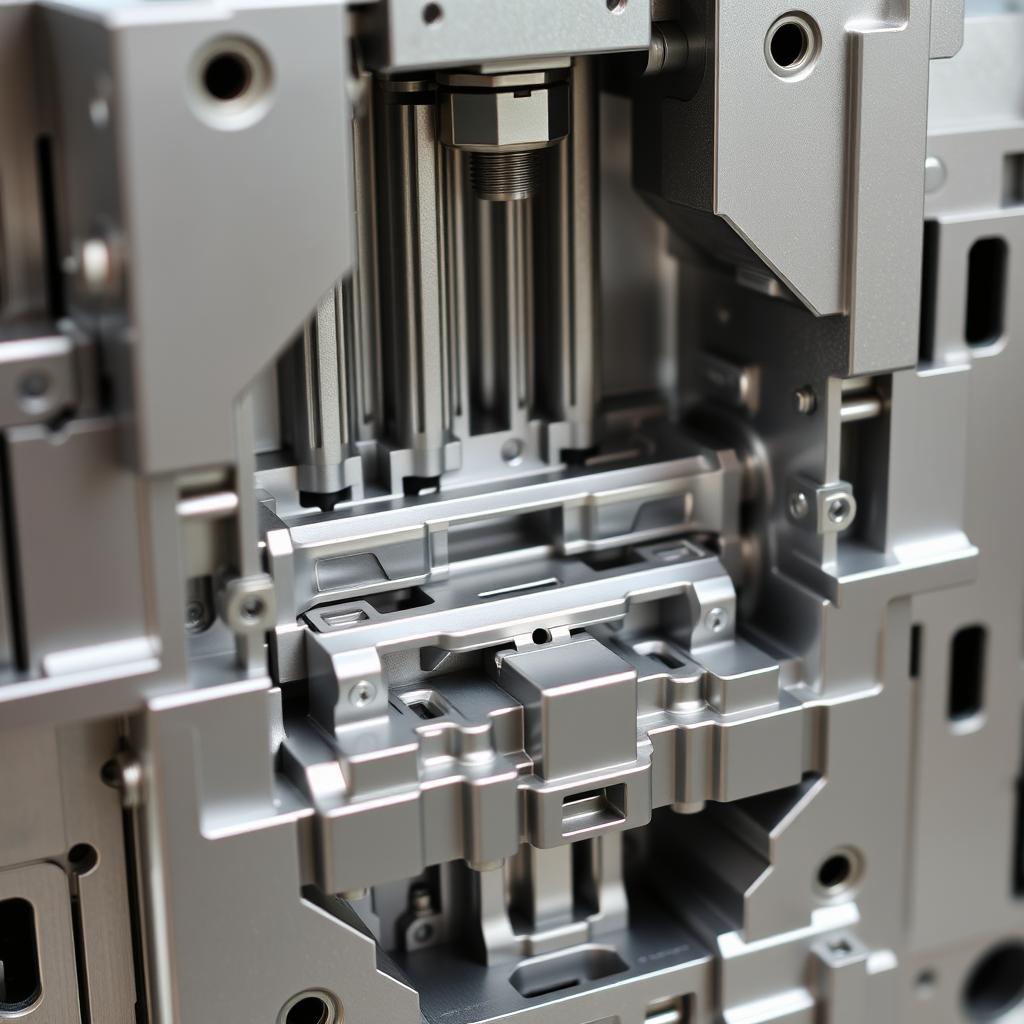

The Core Economics: What Cavity Count Actually Controls

Every cavity you add does two things simultaneously. It raises tooling cost and lowers per-part cost. The break-even volume is where those two curves cross, and that number drives every cavity count decision you should make.

Tooling cost scales at roughly 60 to 75 percent of the cost of the previous cavity tier for offshore molds in P20 or H13 steel. A single-cavity mold for a 4-inch ABS housing might run $18,000. A 2-cavity version of the same part runs $28,000 to $32,000. A 4-cavity runs $42,000 to $50,000. The press time per part, however, drops nearly proportionally because you are pulling two or four parts per cycle instead of one.

Cycle time is the multiplier. If your single-cavity cycle runs 28 seconds in a 220-ton press, a balanced 4-cavity cold runner tool in the same press still runs 30 to 32 seconds total because cooling dominates, not fill time. You are buying parts per hour, not just parts per cycle. At 30 seconds per cycle, a 4-cavity tool produces 480 parts per hour versus 120 from a single-cavity tool running the same machine rate.

Break-Even Analysis: 1 vs 2 vs 4 vs 8 vs 16 Cavity

The table below uses a representative 30-gram ABS consumer part, offshore tooling in P20, a $65/hour US press rate (250-ton machine), and a 32-second average cycle. Tooling costs are based on pricing we see routinely from our partner shops in Shenzhen and Dongguan. Amortization assumes zero scrap and first-article approval inside two iterations.

Cavity Count	Tooling Cost (USD)	Parts/Hour	Press Cost/Part	Break-Even vs 1-Cavity (parts)
1	$18,000	113	$0.575	Baseline
2	$28,500	225	$0.289	37,000 parts
4	$46,000	450	$0.144	71,000 parts
8	$72,000	900	$0.072	108,000 parts
16	$118,000	1,800	$0.036	159,000 parts

Read the break-even column carefully. If your program lifetime is 80,000 parts, a 4-cavity tool crosses break-even but an 8-cavity tool does not. Buying eight cavities for an 80,000-part program wastes roughly $26,000 in unrecovered tooling cost compared to the 4-cavity option.

The 16-cavity tier introduces a second constraint. A 30-gram part times 16 cavities equals 480 grams of shot weight plus runner. That typically demands a 550-ton to 650-ton press and a barrel with 24 to 32-ounce capacity. Press size jumps are not linear in cost. A 650-ton machine runs $110 to $140 per hour at US rates versus $65 per hour for a 250-ton machine, according to production rate surveys published by Plastics Technology. You must fold that press rate increase into your per-part math before committing to high cavity counts.

How Many Cavities an Injection Mold Needs: The Four Decision Inputs

When a customer asks us how many cavities their injection mold needs, we answer with four questions before we quote anything.

• Annual volume and program life: Total lifetime parts, not just year-one forecast. A product with a 3-year life at 200,000 units per year is a 600,000-part program. Size the tool for that number.
• Part geometry and wall section: Parts with 0.060-inch nominal wall and clean geometry scale to high cavitation cleanly. Parts with 0.120-inch walls, deep cores, or side actions do not. Each side action added to a multi-cavity tool multiplies mechanical complexity by the cavity count.
• Tolerancing and material: If your part holds ±0.002 inch on a feature in 30% glass-filled nylon (shrink rate 0.3 to 0.5%), cavity-to-cavity consistency becomes a qualification burden. More cavities means more validation work at first article. ISO 20457 tolerance classes apply per cavity, not per mold.
• Available press floor: Know your molding partner’s largest press before you size cavitation. A supplier running 500-ton machines as their ceiling cannot run your 16-cavity tool without a second source.

Single Cavity vs Multi Cavity: When Fewer Cavities Win

The single cavity vs multi cavity debate is not always won by higher cavitation. There are four situations where a single-cavity or 2-cavity tool is the correct engineering answer.

First, prototype and bridge programs with volumes under 25,000 parts. The $18,000 single-cavity tool ships in 6 to 8 weeks offshore. The 4-cavity tool ships in 10 to 12 weeks. That 4-week difference matters when you are filling purchase orders waiting on tooling.

Second, large parts. A 14-inch automotive duct in PP with a 450-gram shot needs a 500-ton press at 1 cavity. Going to 2 cavities requires a 1,000-ton machine, doubles the cooling circuit complexity, and may not fit in your molding partner’s facility at all.

Third, parts with complex side actions or internal lifters on every face. Each added cavity duplicates the mechanical elements. A single-cavity tool with four side actions costs $42,000 and is serviceable by one technician. A 4-cavity version of that same part approaches $130,000 and requires full-set replacement if one action fails in production.

Fourth, low-volume high-mix programs. If you have 12 SKU variants of the same basic housing, a single-cavity tool per variant gives you flexibility to swap and run. A family mold seems attractive until you realize you must run all cavities simultaneously or block them, and cavity blocking reduces gate balance and increases warp risk in semi-crystalline materials.

Family Molds: When They Work and When They Break Down

A family mold runs two or more different parts in the same tool on the same cycle. The appeal is obvious: one tool purchase instead of two or three. We have built family molds that saved customers $35,000 in tooling cost on three-part assemblies. We have also seen family molds become production anchors that tie up a press every time any one part needs a design change.

Family molds work when all parts in the tool share three characteristics. They are the same material with the same color. They have compatible wall sections so fill and cooling times align within 10 to 15 percent. They have similar projected areas so the clamp load distributes without parting-line flash on the lighter-tonnage cavities.

Family molds break down fast when those conditions are not met. Running a 0.060-inch wall part and a 0.100-inch wall part in the same tool means one cavity is always packing incorrectly. The thin-wall cavity over-packs while the thick-wall cavity under-packs, and you end up with dimensional rejects on at least one part in every production lot.

The multi-cavity mold cost premium for a family tool versus dedicated single-cavity tools for each part is typically 30 to 45 percent lower total tooling spend upfront. The tradeoff is reduced production flexibility and higher risk per engineering change order. Run the numbers for your specific volumes before choosing either path.

Press Size, Clamp Tonnage, and Cavity Count Interaction

Cavity count is not just a tooling decision. It is a press selection decision. The two constraints that force a press upgrade as cavitation increases are projected area and shot size.

Clamp tonnage requirement equals projected area (square inches) times material fill pressure factor. For ABS, that factor runs 2 to 4 tons per square inch. For 30% GF nylon, it runs 4 to 6 tons per square inch, according to Moldflow analysis benchmarks published by Autodesk. A 4-cavity ABS part with 8 square inches of projected area per cavity needs (4 x 8 x 3) = 96 tons minimum, well inside a 150-ton press. Scale to 16 cavities and you need 384 tons minimum before safety factor. Add 15 to 20 percent safety margin and you are specifying a 450-ton press.

Shot size is the second gating factor. Most press manufacturers rate barrels for optimal processing at 20 to 80 percent of maximum shot capacity. Running above 80 percent degrades material homogeneity and residence time control. Size your cavitation so the total shot weight including runner system lands in that 20 to 80 percent window for the press you intend to use.

Our project managers run a combined clamp-and-shot check on every cavity count recommendation before we finalize a tooling quote. It takes 20 minutes and has saved multiple customers from spec’ing tools their production floor cannot run without renting press time externally.

Frequently Asked Questions

What is the typical multi-cavity mold cost increase going from 2 to 4 cavities?

For a simple to moderate complexity part in P20 steel with a cold runner, going from 2 to 4 cavities typically adds 55 to 70 percent to the base 2-cavity tooling cost. For our ABS housing example, that means $28,500 becomes $46,000. The increase covers additional cavity steel, a larger base, longer cooling circuits, and rebalancing the runner system.

How do I know if a family mold is right for my assembly?

Start with material compatibility. If all parts in the assembly run the same resin and color, a family mold is at least worth quoting. Then check wall section variance; if your thickest wall is more than 40 percent heavier than your thinnest, reject the family mold concept immediately. Finally, estimate how frequently each part will need a design change independently, because any change to one cavity affects the whole tool’s downtime.

Does going from single cavity vs multi cavity change lead time on offshore tools?

Yes, but less than most buyers expect. A single-cavity tool in P20 for a medium-complexity part ships in 6 to 8 weeks ex-works from China. A 4-cavity version of the same part ships in 10 to 12 weeks. An 8-cavity tool typically runs 12 to 14 weeks. The added time comes from cavity insert machining, runner balancing, and additional T1 sample sets for validation.

At what volume should I consider moving from a 4-cavity to an 8-cavity tool?

Based on the break-even table above, the crossover point where an 8-cavity tool recovers its additional tooling cost versus a 4-cavity tool is approximately 108,000 lifetime parts for a 30-gram ABS part at US press rates. If your program forecast is below 100,000 parts with high confidence, stay at 4 cavities. If the forecast is above 150,000 parts, the 8-cavity investment pays back clearly.

What steel grade should I specify for a high-cavitation mold?

For production tools running 500,000 cycles or more with filled materials, specify H13 or 420SS for cavity inserts. H13 handles abrasion from glass or mineral fill well and polishes to SPI A2 finish. P20 is acceptable for unfilled resins at 4 cavities or fewer when the target life is under 500,000 cycles. For corrosive resins like PVC or FR-rated materials, 420SS is the correct choice regardless of cavity count.

Use our clamp force calculator at /tools/clamp-force-calculator to run your specific part geometry and cavity count through a combined tonnage and shot size check before you finalize your tooling specification.
