Injection mold modification cost runs anywhere from $300 for a simple polish re-do to $28,000 for a full cavity add on a multi-cavity family tool. Most engineering teams budget too low because they price the machining and forget the downstream costs: re-sampling, re-qualification, and shipping the tool back across the Pacific. This article breaks down every line item with real USD ranges so your next engineering change order has a defensible number behind it.

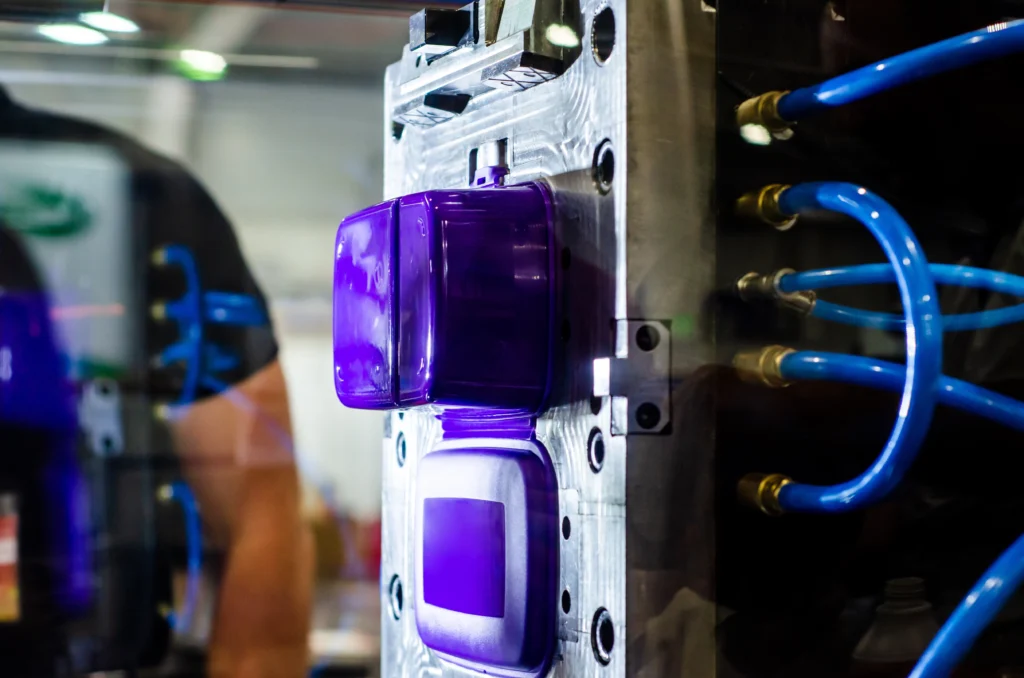

Why Mold Rework Cost Is Harder to Predict Than New Tooling
New tooling bids are straightforward. You send a 3D model, you get a price. Mold rework cost is messier because the shop inherits someone else’s steel, someone else’s tolerances, and sometimes someone else’s mistakes. Every change touches at least three cost centers: labor, lost production time, and re-qualification.
The other variable is location. A domestic toolmaker in Ohio charges $95 to $145 per hour for EDM and CNC work. Our preferred shops in Shenzhen and Dongguan run $18 to $32 per hour for equivalent operations, according to rates we have collected on 60-plus active programs over the last four years. That spread is real and it matters when a cavity correction requires 40 hours of sinker EDM.
Before you price any modification, answer three questions. What steel is the mold built in? P20 machines quickly. H13 at 48 to 52 HRC takes 30 to 40 percent longer and wears tooling faster. S7 is tougher still. Second, does the change add or remove material? Adding steel means welding, which introduces heat-affected zones and potential stress cracking. Removing steel is almost always cleaner. Third, does the change require a new parting line or affect the shut-off surfaces? If yes, double your estimate.
Line-Item Cost Breakdown for the Most Common Changes
The table below reflects offshore pricing from Chinese toolmakers on SPI Class 101 and Class 103 molds. Domestic pricing runs 3.5x to 5x these figures. Ranges account for part complexity, steel hardness, and whether the change requires welding.
| Modification Type | Offshore Cost (USD) | Domestic Cost (USD) | Typical Lead Time |
|---|---|---|---|
| Polishing re-do (single cavity, A-side) | $300 to $700 | $900 to $2,200 | 3 to 5 days |
| Texture change (EDM or acid etch) | $800 to $2,500 | $2,800 to $7,000 | 5 to 10 days |
| Gate modification (relocate or resize) | $600 to $1,800 | $2,000 to $5,500 | 4 to 7 days |
| Mold insert swap (replace one cavity insert) | $1,200 to $4,500 | $4,500 to $14,000 | 7 to 14 days |
| Core or cavity weld repair (steel add) | $900 to $3,500 | $3,200 to $10,000 | 5 to 12 days |
| Cavity add (new cavity to existing base) | $6,000 to $18,000 | $18,000 to $52,000 | 3 to 7 weeks |
| Ejector pin relocation or addition | $400 to $1,200 | $1,200 to $3,800 | 3 to 6 days |
| Cooling line addition or reroute | $1,500 to $5,000 | $5,000 to $15,000 | 5 to 14 days |
These numbers assume the mold is already at the toolmaker’s facility. If the tool ships from your molding plant in Indiana to a domestic shop, add $400 to $900 in freight each way and two to three weeks of transit buffer. Offshore, we ship tools on a door-to-door basis using a licensed customs broker; typical freight cost for a 1,500-lb mold base from California to Shenzhen runs $1,100 to $1,600 one way.
Engineering Change Mold Orders: The Hidden Costs No One Quotes
The machining invoice is the smallest part of a real engineering change mold order. Our project managers track four additional cost buckets that most teams ignore until the program review.
Re-sampling and qualification is the biggest one. Every structural change requires at least one validation shot and often a full PPAP or first-article inspection. Offshore sampling costs $400 to $1,200 per session including labor and material. Domestic sampling runs $1,500 to $4,000. If the change fails and requires a second round, double those numbers.
Production downtime is the second hidden cost. A 4-cavity tool running a 22-second cycle on a 220-ton press at $85 per hour machine rate loses roughly $1,870 per week while it sits at the toolmaker. That math changes your urgency calculation on every modification decision.
The third cost is program management time. Your tooling engineer will spend 8 to 20 hours coordinating a non-trivial change, reviewing 2D redlines, approving weld procedures, and reviewing dimensional reports. At a fully burdened rate of $75 to $110 per hour, that is $600 to $2,200 of internal cost that never appears on the toolmaker’s invoice.
The fourth cost is expedite fees. If the modification lands on a critical path, offshore shops charge 20 to 35 percent premium for rush scheduling. Domestic shops charge 40 to 60 percent. Build the base cost estimate first, then apply the expedite multiplier if schedule demands it.
Mold Insert Swap Cost vs. Full Cavity Replacement: How to Choose
A mold insert swap is the right call when the geometry change is confined to a localized area and the existing mold base, runner system, and cooling layout remain valid. Insert swaps run $1,200 to $4,500 offshore for a single interchangeable insert, compared to $6,000 to $18,000 for a full cavity add. The savings are real, but inserts have a constraint: the pocket must already be designed for interchange, or the shop has to first machine the pocket, which adds $800 to $2,000 to the insert cost.
If you are three or more engineering revisions into a program and each revision touches a different zone of the cavity, consider designing the next version with a full family of inserts from the start. We have run programs where insert-based tooling strategies cut cumulative mold rework cost by 38 percent over an 18-month product development cycle compared to monolithic cavity construction.
Full cavity replacement makes sense when the geometry change exceeds 40 percent of the cavity volume, when cooling needs a complete redesign, or when the existing steel has been welded more than twice in the same zone. Repeated welding on P20 degrades the microstructure and increases the risk of surface cracking under cyclic load. H13 handles re-welding better but still has limits.
How Much to Modify a Mold: Texture and Polish Changes
Texture and polish changes are the most underestimated modifications on a cost sheet. Teams treat them as cosmetic work and budget accordingly. They are not cosmetic once you factor in the process.
An acid etch texture change on a 6-by-8-inch cavity face requires masking all adjacent surfaces, stripping the existing texture to bare steel, applying the new etch in a controlled chemical bath, and re-polishing any witness marks. Offshore, this runs $800 to $1,800. If the cavity has lifters or side actions that share the texture zone, add $300 to $600 per moving component.
A polish re-do from SPI B-2 to SPI A-2 (diamond buff, 6,000 grit) on a cosmetic lens cavity requires 12 to 20 hours of hand work. At offshore labor rates, that lands at $300 to $700. The same job at a domestic optical-grade polishing shop runs $1,400 to $3,200. The finish grade matters: going from A-2 to A-1 is not linear, it typically adds 60 to 80 percent more bench time because the final two diamond stages are where most defects originate.
If your part has a draft angle under 1.5 degrees on a textured surface, budget for a draft correction before the texture work. ISO 20457 does not specify minimum draft for texture, but SPI and most texturing vendors require a minimum of 1.5 degrees per 0.001 inches of texture depth. Missing this requirement means the texture will pull during ejection and you will be back at the toolmaker within 50,000 shots.
Calculating Total Modification Cost: A Real Program Example
Here is a real scenario from a program we managed in 2023. The client, a medical device OEM, had a 2-cavity ABS housing tool built in P20 at a Tier 1 shop in Guangdong. After first-article inspection, engineering issued three changes: relocate the gate from a side gate to a submarine gate on cavity 2, add 0.25-degree draft to two interior ribs that were ejecting with drag marks, and upgrade the A-side finish from SPI B-1 to SPI A-2.
The toolmaker quoted the work as follows. Gate relocation: $1,400 (included weld-up of the old gate location and new CNC pocket). Draft correction via polishing: $550 per cavity, $1,100 total. Polish upgrade, A-side only: $600. Total machining and bench work: $3,100.
Add two sampling sessions at $650 each: $1,300. Internal engineering time at 14 hours at $90 per hour: $1,260. Freight both ways at $1,350 round trip: $1,350. Total program cost of the three-change ECO: $8,010. The original toolmaker’s quote showed $3,100. The real cost was 2.6 times that number.
This is why we build ECO budgets with a 2x multiplier on the machining quote as a starting floor when sampling and logistics are required. For changes that do not require re-sampling, a 1.4x multiplier on the machining quote covers most scenarios.
Frequently Asked Questions
What is the average injection mold modification cost for a simple geometry change?
A localized geometry change that requires only CNC re-machining and no welding typically runs $600 to $2,500 offshore and $2,000 to $7,500 domestically. Those ranges assume the change removes material; adding material through welding increases cost by 40 to 80 percent and adds risk. Always confirm whether the change is additive or subtractive before accepting a quote.
How much does a mold insert swap cost compared to building a new mold?
A mold insert swap costs $1,200 to $4,500 offshore for a single insert in an existing pocket, versus $8,000 to $35,000 for a new single-cavity mold covering the same part geometry. The insert route is the right choice when the base, cooling, and runner are all valid. When two or more of those systems need changes, the cost gap narrows quickly and new tooling may be the cleaner path.
Does an engineering change mold order require a new PPAP?
It depends on your customer’s control plan and the scope of the change. Any modification that affects a functional dimension, a sealing surface, a material flow path, or a surface that contacts the product typically triggers a Level 3 PPAP under AIAG standards. Cosmetic changes like polish upgrades usually require only a re-submission of the appearance approval report. Confirm the PPAP level in writing before the tool ships to the toolmaker.
How long does mold rework take from a shop in China?
Simple corrections (polish, gate resize, ejector pin add) take 3 to 7 business days in the shop, plus 7 to 14 days for ocean freight each way. For critical-path changes, air freight cuts transit to 3 to 5 days at roughly 4 times the ocean freight cost. A full cavity add or cooling reroute requires 3 to 6 weeks in-shop regardless of shipping mode.
Can you texture a mold that has already been welded?
Yes, but the weld zone and the base steel etch at different rates because they have different microstructures and hardness values. A skilled texturing vendor will compensate by masking the weld area and etching it separately with a modified acid concentration, but this adds $200 to $600 to the texture job and requires an experienced vendor. Ask for a witness coupon from the same weld rod before committing to acid etch on a critical cosmetic surface.
