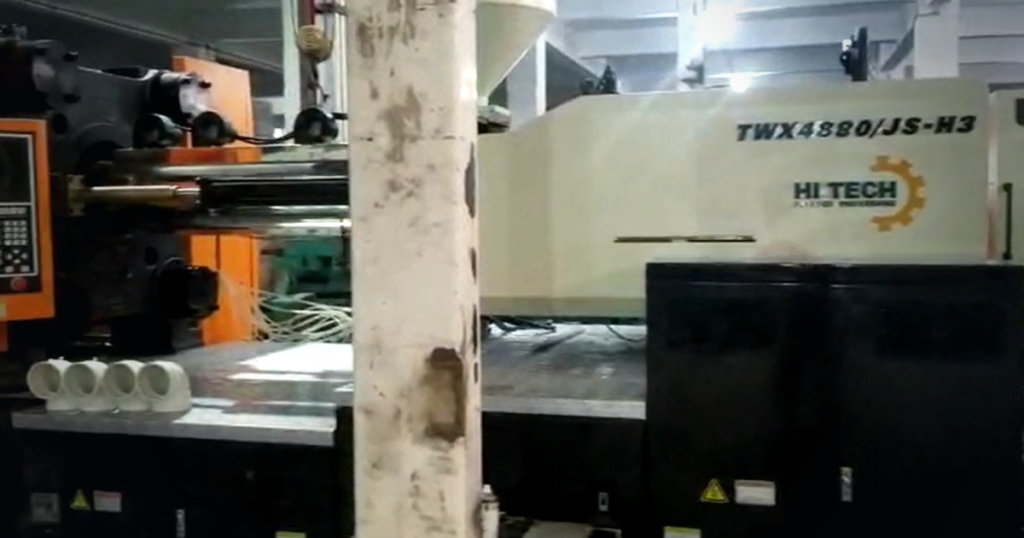

The Short Answer
Injection mold qualification is the structured process of proving that a new or modified mold can repeatedly produce parts that meet defined dimensional, functional, and regulatory requirements under a statistically capable molding process. A mold is qualified when part data, not sample opinion, shows it holds tolerance at a capable process, typically CpK 1.33 or higher per ISO 22514 and AIAG SPC guidance.
Most buyers approve a mold on a handful of good looking samples. That is how disputes start six months into production. This guide covers the standards you should name in your RFQ, the capability numbers to demand, and the run tests that separate a real qualification from a hopeful one. MoldMinds is vendor agnostic, with no referral arrangements, so this reflects buyer interest only.
What is injection mold qualification?
Injection mold qualification is the documented process of proving a mold produces conforming parts repeatedly under a stable, capable process. In regulated and automotive sectors it sits inside a broader process validation framework that confirms the molding process consistently yields parts meeting all tolerance and quality requirements.
ISO 9001 based quality systems and IATF 16949 for automotive both require documented process validation. That means evidence of stable production parameters, capability indices such as Cp and Cpk, and a control plan for the injection molding process. Qualification is not a single trial. It is a chain of evidence: dimensional reports, capability studies, appearance checks, and run tests, all tied back to named standards. Our US-based technical oversight builds that chain during offshore sourcing so the mold arrives with data, not just a box of parts.
Which standards define injection mold qualification criteria?

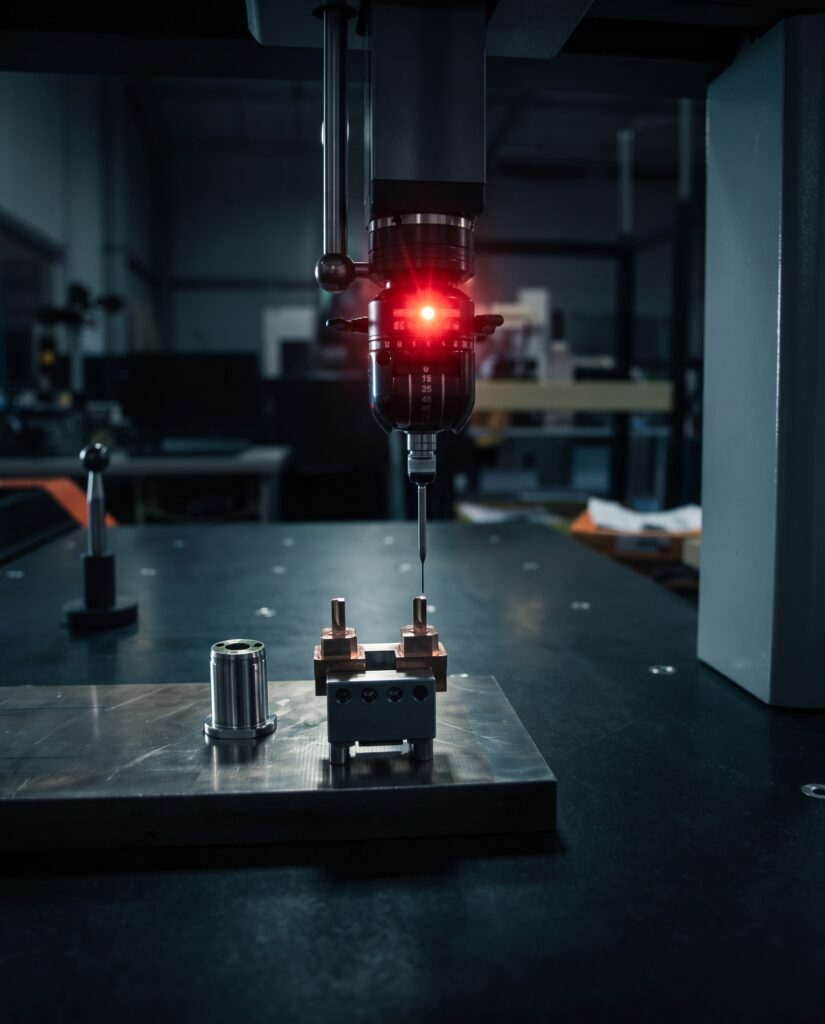

Dimensional acceptance references plastic-part tolerance standards, not machining tolerances. ISO 20457 (“Plastics molded parts: tolerances and acceptance conditions”) and DIN 16742 (“Dimensional tolerances for injection molded parts”) are commonly used to define acceptable variation on molded parts, and they frame the qualification pass or fail line.
These standards separate part tolerances, which are the customer acceptance criteria, from machining and tool tolerances. The qualification decision rests on whether molded parts meet an ISO 20457 or DIN 16742 class under a capable process, typically CpK 1.33 or higher per ISO 22514 and AIAG SPC guidance. Geometrical callouts lean on ISO 1101 and ISO 8015. Naming these in the RFQ and on the drawing aligns expectations and cuts acceptance disputes, because the buyer judges the mold on data rather than informal samples or unreferenced tolerance statements.
| Purpose | Standard | What it defines |
|---|---|---|
| Part dimensional tolerances | ISO 20457 / DIN 16742 | Acceptable dimensional variation classes for molded parts |
| Geometrical tolerancing | ISO 1101 / ISO 8015 | Form, orientation, and location callouts on drawings |
| Process capability | ISO 22514 / AIAG SPC | Cp and Cpk method, capable process target of 1.33 or higher |
| Automotive validation | IATF 16949 | Documented process validation and control plans |
| Mold class and life | SPI Class 101 to 105 | Expected mold life, hardness, and design features |
| Surface and appearance | ASTM D523 | Gloss measured at defined viewing angles |
What process capability should you require to approve a mold?
Require a capability study, not a single first article. The common production benchmark is CpK 1.33 or higher on critical dimensions, measured per ISO 22514 and AIAG SPC guidance across a run large enough to show the process is stable, not lucky.
Capability indices only mean something when the process is in statistical control first. A supplier who sends three good parts has told you nothing about repeatability. Ask for the sample size, the measurement method, and the parameters the study ran at, then confirm those same parameters live in the control plan. If the parts meet the ISO 20457 or DIN 16742 class but CpK sits below 1.33, the mold is not qualified yet. Either the process needs tightening or the tool needs work. Based on MoldMinds experience, the gap between a pretty sample and a capable process is where most offshore surprises hide.
How do SPI mold classes affect qualification tests?
SPI mold class sets the durability bar, and durability drives which tests you mandate. SPI guidelines (Class 101 through 105) define expected mold life, from no more than 500 cycles up to one million or more, along with minimum hardness for mold bases and molding surfaces and design features such as guided ejection and temperature-control provisions.
For a high-volume tool such as SPI Class 101, qualification commonly includes verifying the mold can run continuously at the target cycle time without failure, that hardened cavities and cores and the cooling channels perform as intended, and that part quality stays within tolerance over an extended run. A low-volume Class 104 or 105 tool does not need that same endurance proof, so mandating it wastes money. Match the qualification depth to the class, and factor mold life into total cost of ownership. A cheaper tool that dies at 200,000 cycles on a million-part program is the expensive option.
- Confirm the mold class and steel selection match the annual and lifetime volume.
- For high-volume classes, run a continuous cycle-time endurance test and watch for sticking, flash, and thermal drift.
- Verify cooling channel performance and stable temperature distribution across the cavity.
- Pull a capability study on critical dimensions at production parameters.
- Check surface finish and appearance against the named ASTM or ISO method.
How is surface finish and appearance qualified?
Surface quality is qualified against a named method and a stated limit, not a subjective look. Gloss and surface defects may be evaluated per ASTM D523 at defined viewing angles, and cavity surface roughness gets a maximum Ra value that fits the part, from a mirror finish Ra limit for optical parts to a higher Ra for general parts.
Typical acceptance criteria include the maximum cavity Ra plus a plain statement such as no visible tool marks or scratches on molded parts when inspected under specified conditions. Write the viewing angle, the lighting, and the distance into the acceptance conditions. Cosmetic and optical parts fail more qualifications on appearance than on dimensions, and the fights are almost always about an undefined inspection setup. Objective, verifiable appearance data protects both the buyer and our manufacturing partner.
What defines a fully qualified mold?
A qualified mold clears three dimensions at once: technical indicators, production adaptability, and durability. Technical indicators cover dimensional accuracy, surface quality, and functional verification. Production adaptability covers cycle time, cooling performance, and the absence of sticking or flash. Durability covers mold life relative to steel selection and class.
In practice, qualification combines quantitative criteria (tolerances, roughness, capability indices, thermal performance) with practical run tests such as consecutive shots without sticking and a stable temperature distribution before the mold is accepted into full-scale production. Standardized test molds support the upstream material work: ISO 294-5:2017 specifies a “type F” injection mold that produces test plates at a preferred 80 mm by 120 mm by 2 mm to characterize anisotropic material properties. That data helps explain how flow direction and filler orientation affect part performance, which feeds the design assumptions behind your production tool.
Pulling qualification together across an offshore build is a program management job. Our injection molding tooling project management service runs the standard callouts, the capability studies, and the run tests as US-based oversight so the mold lands qualified. For the sourcing side, see our guide to vetting a China mold maker and the fundamentals of injection mold tolerances.
