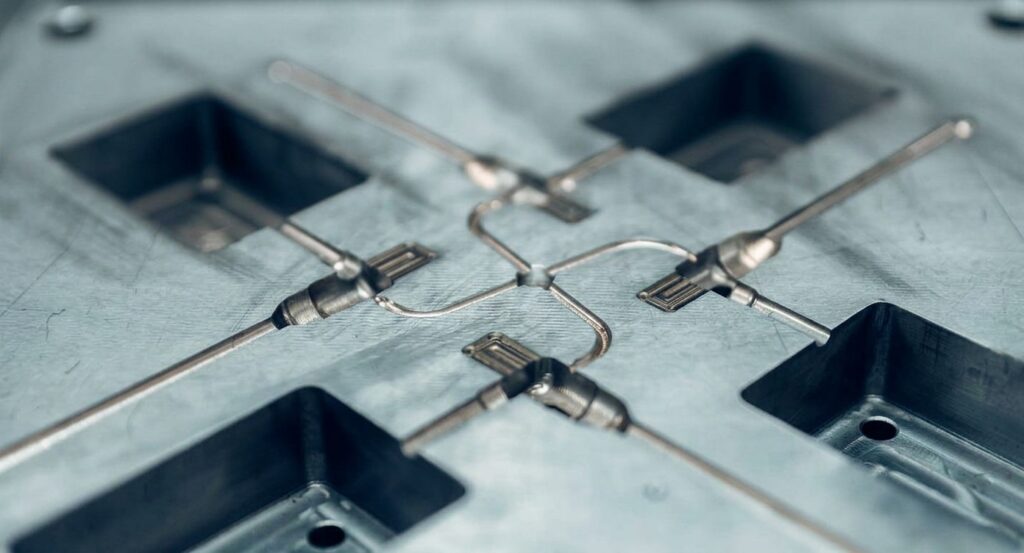

Injection Molding Gate Types: How to Choose the Right Gate Design

Choosing the wrong injection molding gate types costs more than rework. It costs you cycle time, cosmetic rejects, and sometimes the entire tool. Pick the right gate at the DFM stage and you can eliminate 80% of gate-related quality problems before steel is ever cut. This guide covers every common gate design, sizing rules, witness mark impact, and the decision logic we use on every program.

Why Gate Design in Injection Molding Controls More Than You Think

The gate is the last point of process control before plastic enters the cavity. Its geometry sets shear rate, fill pressure, freeze-off timing, and vestige height. Get any one of those wrong and you are chasing problems at the press instead of solving them at the design table.

Gate sizing is not optional engineering. The SPI mold classification standard 101 specifies that gate land length should not exceed 0.030 inches for most thermoplastics. Longer lands increase pressure drop and raise melt temperature through shear, both of which accelerate degradation in heat-sensitive resins like POM or TPU.

Gate location in injection mold design drives weld line position, cosmetic parting, sink risk, and residual stress orientation. A gate placed 0.25 inches from nominal does not cause minor variation. It can flip a weld line from a non-visible interior surface to a Class A face, killing the part at first sample.

The Seven Gate Types You Need to Know

We work with all seven of these gate configurations regularly. Each has a specific application range, a cost profile, and a witness mark consequence your team needs to own before tooling kicks off.

Gate Type	Auto-Degating	Witness Mark	Typical Size Range	Best Application
Edge Gate	No	Yes, requires trimming	0.040 to 0.250 in wide	General purpose, flat parts
Submarine (Tunnel) Gate	Yes	Small pip, often hidden	0.030 to 0.080 in dia	Two-plate tools, cosmetic parts
Hot Tip Gate	Yes	Small nub, 0.010 to 0.030 in	0.040 to 0.120 in dia	Hot runner systems, single-cavity
Valve Gate	Yes	Minimal, flush to part	0.060 to 0.250 in dia	High cosmetic, sequential fill
Fan Gate	No	Wide vestige strip	0.500 to 2.000 in wide	Flat sheet, optical parts, PC
Diaphragm Gate	No (secondary op)	Ring vestige at bore	Full bore diameter	Cylindrical parts, round through-holes
Tab Gate	No	Vestige on sacrificial tab	0.060 to 0.125 in	Filled resins, brittle materials

Edge Gate vs Submarine Gate: The Most Common Decision You Will Make

The edge gate vs submarine gate choice comes up on almost every two-plate cold runner tool. Edge gates are cut into the parting line and require manual trimming or a secondary degating operation. Submarine gates shear automatically during ejection, which saves labor but demands precise geometry and a tough enough resin to survive the shear without shattering.

Edge gates are the right call when your resin is glass-filled, brittle, or runs above 30% filler loading. Submarine gates work well in unfilled nylons, ABS, PP, and HDPE where elongation at break is above 15%. Running a 40% glass-filled PA6 through a submarine gate will produce fractured gate vestige and intermittent short shots within the first 5,000 cycles. We have seen this failure mode on three separate offshore programs where the tool was quoted without DFM review.

Submarine gate sizing follows a simple rule: diameter should equal 60% to 70% of the wall thickness at the gate land. For a 0.100-inch wall, that puts you at a 0.060- to 0.070-inch gate diameter. Go smaller and you risk freeze-off before pack is complete. Go larger and the shear force during ejection tears the part surface instead of clipping cleanly.

Hot Tip Gate and Valve Gate: When Hot Runners Justify the Cost

A hot tip gate is the standard nozzle configuration on most hot runner systems. The gate diameter at the tip is typically 0.040 to 0.080 inches for mid-size parts, and the vestige is a small nub that protrudes 0.010 to 0.030 inches above the part surface. That nub is acceptable on non-cosmetic surfaces but is a reject condition on Class A faces without secondary finishing.

Valve gates eliminate the vestige problem entirely. A pneumatic or hydraulic pin closes flush with the cavity surface at pack completion. The witness mark is a circle equal to pin diameter, typically 0.060 to 0.125 inches, with a surface texture that matches the surrounding steel polish. On automotive interior components where SPI-A2 finish is specified, valve gates are not optional; they are the only cold-runner-free solution that passes cosmetic buy-off.

Hot runner system cost runs $8,000 to $35,000 depending on drop count and controller complexity, according to tooling quotes our project managers have sourced from five qualified Chinese mold shops in the last 24 months. A comparable cold runner tool with secondary degating equipment runs $2,500 to $6,000 for the degating fixture alone. The crossover point is roughly 500,000 annual parts when you factor in labor, runner regrind loss, and cycle time difference from runner cooling.

Fan Gates and Diaphragm Gates: Specialty Applications, Specific Rules

Fan gates spread flow across a wide face to reduce shear-induced orientation in optically sensitive or warpage-critical parts. Polycarbonate lenses, flat display bezels, and large-area panels benefit from fan gates because the wide flow front holds orientation stress below the threshold that causes birefringence. The gate width is typically 50% to 100% of the part face width, and depth tapers from 0.060 inches at the runner to 0.020 inches at the gate land.

The cost of the vestige is real. Fan gate trimming requires a straight shear die or a precision hand trim operation. On a 6-inch-wide gate, a 0.010-inch variation in trim depth is visible as a surface step under raking light. Your secondary operations budget needs to account for fixture cost, which runs $1,200 to $4,500 depending on part geometry, and per-piece trim time of 8 to 15 seconds for a manual operation.

Diaphragm gates solve a specific problem: round through-hole features in cylindrical parts like gears, bushings, and threaded inserts where concentricity and roundness tolerances are tighter than 0.005 inches total indicator runout. The gate feeds the full circumference simultaneously, eliminating the knit line that a side gate would produce directly across the bore. Removal requires a secondary punch-out operation, which adds $0.04 to $0.12 per part in high-volume programs according to cost modeling our team runs using actual shop floor time data from our Guangdong-region partners.

Gate Location in Injection Mold Design: Rules That Are Not Negotiable

Gate location in injection mold design is constrained by four factors: fill balance, weld line placement, cosmetic surface requirements, and stress orientation relative to load direction. Violating any one of these in favor of tooling simplicity is a decision you will pay for during validation.

Place gates at the thickest wall section whenever part geometry allows. Plastic flows from thick to thin naturally, which reduces sink risk and shortens effective packing distance. A gate placed at a 0.080-inch wall feeding into a 0.150-inch wall creates a hesitation zone. That hesitation raises the probability of a cold slug defect by a factor of 3 to 4 in semi-crystalline resins like POM and PA66, based on fill simulation data we review through Moldex3D analysis on programs above $50,000 in tool value.

Weld lines form where two flow fronts meet, and you cannot eliminate them; you can only move them. The gate location determines where they land. On a structural housing that sees 200 in-lb of torque, a weld line at the boss base is a failure waiting for a drop test. Move the gate 0.400 inches and the weld line moves to a rib intersection where the local thickness doubles the effective cross-section. That single change can increase weld line strength by 40% to 60% in filled nylons, per tensile data published by BASF for Ultramid grades.

Keep gates away from features with tight tolerances. Gate-adjacent material sees the highest shear, the highest thermal gradient, and the highest residual stress concentration. ISO 20457 specifies tolerance grades for injection molded parts, and achieving tolerance grade 3 or better within 0.500 inches of a gate requires process stability that most production environments cannot sustain consistently.

Gate Sizing Rules by Resin Family

There is no universal gate size formula. Resin viscosity, processing temperature, and wall thickness all interact. The table below gives starting-point gate diameters for common resin families based on a 0.100-inch nominal wall. Scale proportionally for other wall thicknesses using the 60% to 80% of wall thickness guideline for most amorphous and semi-crystalline materials.

Resin Family	Min Gate Dia (in)	Max Gate Dia (in)	Land Length (in)	Notes
ABS	0.060	0.100	0.020 to 0.030	Shear-sensitive above 45,000 1/s
Polypropylene (PP)	0.045	0.090	0.015 to 0.025	Tolerates submarine gate well
Nylon PA66 (unfilled)	0.050	0.080	0.020 to 0.030	Fast freeze-off; minimize land
Nylon PA66 (30% GF)	0.070	0.120	0.030 to 0.040	Avoid sub gate; edge or tab preferred
Polycarbonate (PC)	0.080	0.150	0.030 to 0.050	Fan gate for optical; avoid sub gate
POM (Acetal)	0.060	0.100	0.020 to 0.030	Very shear-sensitive; keep land short
TPU (Shore 85A-95A)	0.060	0.110	0.020 to 0.030	Submarine gate acceptable in unfilled grades

Frequently Asked Questions

What is the most common gate type used in injection molding?

The edge gate is the most widely used gate type across cold runner tooling globally because it is easy to machine, easy to adjust, and works with nearly every resin family. It does require secondary degating unless the runner is manually broken off, which adds $0.03 to $0.15 per part in labor depending on gate size and part complexity. For high-volume programs above 250,000 annual parts, the labor cost makes submarine or hot runner gating more economical.

When should I specify a valve gate instead of a hot tip gate?

Specify a valve gate when your part has a Class A or SPI-A2 cosmetic requirement at the gate location, when you need sequential fill control across a multi-drop hot runner to manage warpage or weld line position, or when your resin is prone to stringing at the tip. Hot tip gates are sufficient for non-cosmetic surfaces and most engineering resin applications. The valve gate premium is typically $600 to $1,200 per drop over a standard hot tip drop.

How does gate location affect weld line strength?

Gate location controls where flow fronts meet, and the strength of the resulting weld line depends on melt temperature, pressure, and the angle at which those fronts converge. A butt weld at 180 degrees retains roughly 80% to 95% of base resin tensile strength in unfilled amorphous materials. A weld at 90 degrees or less can drop to 40% to 60% retention, particularly in glass-filled grades, according to tensile data published by materials suppliers including BASF and DuPont for their structural resin lines.

Can I change the gate type after the tool is built?

Sometimes, but it is rarely clean or cheap. Changing from an edge gate to a submarine gate requires remachining the parting line insert and the runner geometry. Moving from a cold runner gate to a hot runner system means buying and fitting an entirely new manifold plate, which can run $12,000 to $28,000 on a mid-size tool. The right time to evaluate gate design injection molding decisions is at DFM, before the tool order is signed, not at T1 sample.

What witness mark height is acceptable on a production part?

Acceptable witness mark height depends on the cosmetic specification. SPI surface finish standards do not define vestige height directly, but most OEM cosmetic standards specify a maximum of 0.010 to 0.020 inches above the nominal surface for non-cosmetic faces. For Class A surfaces, the allowable vestige is typically flush to 0.005 inches maximum, which is achievable only with a well-tuned valve gate or a precision degating operation. Document the acceptable vestige in the part drawing or cosmetic standard before tool award to avoid buy-off disputes at first article.
