Short shot injection molding failures account for roughly 15% of all first-article rejections we see on offshore tool launches, and every hour of unplanned press time to diagnose them costs you real money. The good news: 80% of short shots trace back to four root causes, and you can work through all four in a single shift if you follow a systematic process. Here is that process.
What a Short Shot Is and Why It Matters Financially
A short shot is an incomplete fill injection molding condition where the melt front stops before packing out the full cavity. The part ejects with missing geometry, typically at thin walls, distal ribs, or fine features far from the gate. SPI mold classification 101 defines short shots as a Category 1 dimensional defect, meaning the part is unconditionally non-conforming.
The cost is not just scrap. When a short shot condition persists beyond the first 50 shots during press qualification, your team burns setup time, resin, and machine hours. On a mid-size 500-ton press running a $4.00 cycle, 4 hours of diagnostic downtime costs roughly $960 in machine time alone before you count labor or material. Fix short shot conditions before the tool ships from China and that cost disappears entirely.
The four root-cause categories are:
- Insufficient injection pressure or velocity
- Flow restriction in the runner, gate, or cavity geometry
- Inadequate mold venting
- Melt temperature out of the processing window
Step 1: Rule Out Pressure and Velocity First
Before touching the tool, work the machine settings. Set injection pressure to 90% of press capacity and run a short-shot study: fill the part to 95% by volume, then push fill percentage up in 1% increments. If the part fills cleanly at higher pressure, you have a machine setup problem, not a tool problem. Document the required peak injection pressure; if it exceeds 18,000 psi on a standard engineering resin like 30% GF nylon, flag the tool for gate revision.
Velocity matters as much as pressure for thin-wall geometry. A wall section under 1.2 mm needs a fill time under 0.4 seconds to stay above the freeze-off threshold. If your fill time is running 0.9 seconds on a 1.0 mm wall, the melt front stalls before the cavity packs. Increase injection velocity in 10% increments and log peak pressure simultaneously. If peak pressure climbs above the press limit before the part fills, you have confirmed a flow restriction plastic problem that requires a tool change.
Step 2: Diagnose Flow Restriction in the Runner and Gate
Flow restriction is the most common short shot cause on offshore tools we receive, particularly on tools cut to nominal print dimensions without mold-flow validation. The SPI standard recommends gate land length no longer than 0.060 inches. We regularly see Chinese toolmakers deliver gate lands at 0.090 to 0.120 inches on first-pull tools, which increases resistance and drops effective pack pressure by 20 to 30% at the gate.
Check gate diameter or width against your mold-flow report. For a sub-gate feeding a 2.5 mm wall in ABS, you need a minimum gate diameter of 1.8 mm. A 1.2 mm gate on the same application will produce a repeatable short shot regardless of machine settings. Opening the gate by 0.6 mm costs less than $200 in EDM time in our shops; running another full qualification cycle costs ten times that.
Runner balance is a secondary flow restriction issue on family tools. Use the following reference table to confirm your runner diameter is appropriately sized before approving the tool design.
| Wall Thickness (mm) | Resin Type | Min. Runner Diameter (mm) | Min. Gate Diameter (mm) | Max. Gate Land (in) |
|---|---|---|---|---|
| 1.0 to 1.5 | ABS, HIPS | 4.0 | 1.2 | 0.040 |
| 1.5 to 2.5 | ABS, PP | 5.0 | 1.8 | 0.060 |
| 2.5 to 4.0 | PC, ABS/PC | 6.0 | 2.5 | 0.060 |
| 2.5 to 4.0 | 30% GF Nylon | 7.0 | 3.0 | 0.050 |
| 4.0 to 6.0 | TPE, LDPE | 8.0 | 3.5 | 0.060 |
Step 3: Check Venting Before You Touch the Steel
Trapped air is responsible for a class of short shots that looks identical to a pressure problem but will not respond to machine adjustments. As the melt front advances, air must escape through vents machined at the parting line, at ejector pins, and at the end of fill. When venting is inadequate, the trapped gas compresses, resists the incoming melt, and can reach temperatures above 600 degrees Fahrenheit, burning or stalling the flow front.
SPI guidelines specify parting-line vent depth between 0.0005 and 0.002 inches for most engineering resins, with a vent width of 0.125 inches minimum. Many tools from offshore suppliers arrive with no vents cut at end-of-fill locations because the DFM checklist was not enforced before steel was cut. Diagnose a venting short shot by applying a light coat of mold release to suspected trap areas and running 5 to 10 shots: burned discoloration or glossy witness marks at the short area confirm gas trap. Cut vents and requalify.
Ejector pin venting is an underused fix on complex cores. A 0.001-inch flat ground on a 0.25-inch ejector pin adds meaningful vent area without compromising pin strength or part surface.
Step 4: Confirm Melt Temperature and Barrel Profile
Melt temperature outside the resin manufacturer’s recommended processing window is a consistent short shot cause that gets overlooked when the setup tech trusts the barrel setpoints without verifying actual melt temperature. Setpoint and actual melt temperature diverge by 20 to 40 degrees Fahrenheit on worn barrels with degraded heater bands. Measure actual melt temperature with a contact pyrometer at purge, not from the controller display.
For ABS, the processing window is typically 420 to 500 degrees Fahrenheit. Running at 410 degrees on a part with 1.5 mm ribs will produce a repeatable incomplete fill injection molding condition on every cycle. Raise barrel temperature in 10-degree increments, re-purge, and re-measure. Do not exceed the resin manufacturer’s upper limit; for PC, that upper limit is typically 620 degrees Fahrenheit and degradation begins at 640 degrees, producing both short shots and black specks.
Screw back-pressure also affects melt quality. Low back-pressure, under 50 psi, produces inconsistent melt density and shot-to-shot volume variation. We recommend 75 to 150 psi back-pressure as a baseline for amorphous resins and 100 to 200 psi for semi-crystalline resins like nylon and acetal.
Ordered Troubleshooting Sequence Summary
Work through the four categories in this order to avoid chasing symptoms. Skipping ahead to gate modification before confirming machine settings wastes steel and money.
- Verify injection pressure and velocity with a fill study at 90% press capacity
- Confirm actual melt temperature with a contact pyrometer, not the controller display
- Inspect gate land length, gate diameter, and runner diameter against the reference table above
- Check parting-line vents and end-of-fill vent locations for correct depth and width

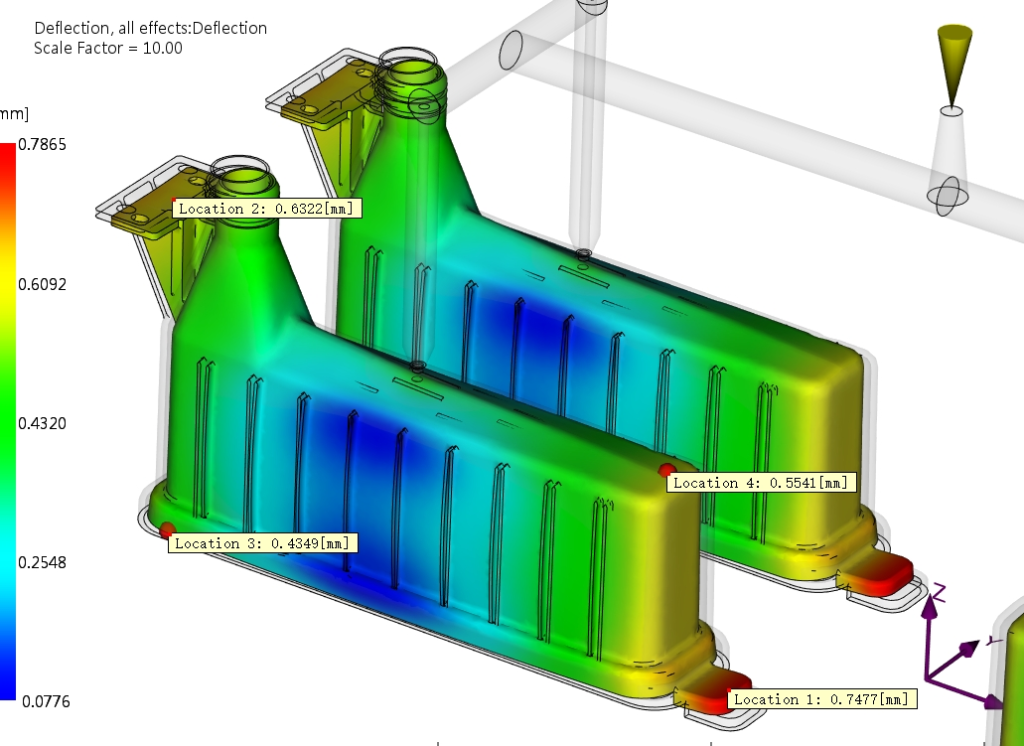

- If the short shot persists after all four checks, commission a mold-flow analysis with actual part geometry and confirmed resin data
In our experience running offshore tool qualifications, following this sequence resolves the short shot condition before any steel is modified approximately 35% of the time. The remaining 65% require a gate or vent correction, which is a faster and cheaper fix when you have already ruled out the process variables.
Frequently Asked Questions
What is the most common short shot cause on offshore injection molds?
In our shops, gate undersizing is the single most frequent root cause, appearing on roughly 40% of short shot cases we see during first-pull qualifications. Offshore toolmakers often cut gates to minimum nominal dimensions without accounting for the specific resin viscosity or part geometry. A gate revision to the correct diameter resolves the condition in one press session.
Can I fix short shot injection molding problems without modifying the tool?
Yes, about 35% of short shot conditions resolve with process adjustments alone, specifically correcting injection velocity, raising melt temperature to the middle of the processing window, or increasing back-pressure. Run a complete fill study before authorizing any tooling modification. Steel removal is permanent and a poorly timed gate opening can introduce flash before the short shot is fully resolved.
How do I know if my short shot is caused by a flow restriction or a venting problem?
A flow restriction short shot responds to higher injection pressure; the part fills further as pressure increases. A venting short shot does not respond to pressure increases and often shows discoloration, burning, or a glossy blister at the short area. Apply mold release to the suspected trap zone and run 5 shots; burn marks confirm gas trap and point directly to a venting fix.
What draft angle is required to prevent short shots on thin ribs?
Draft angle does not directly cause short shots, but inadequate draft on ribs below 1.0 mm wide increases effective flow restriction as the melt compresses the rib geometry during fill. ISO 20457 recommends a minimum 0.5-degree draft on interior rib faces for standard engineering resins. For GF-filled resins, use 1.0 degree minimum to reduce flow restriction and improve ejection.
How much does it cost to fix a short shot by opening a gate?
Gate modifications on a China-sourced P20 or H13 tool typically run $150 to $400 USD per gate for EDM or hand-benching work, depending on gate style and accessibility. That cost is recovered in avoided scrap and press time within the first production run. Get the gate modification in writing as a tool change order and verify dimensions with a pin gauge before the next qualification shot.
