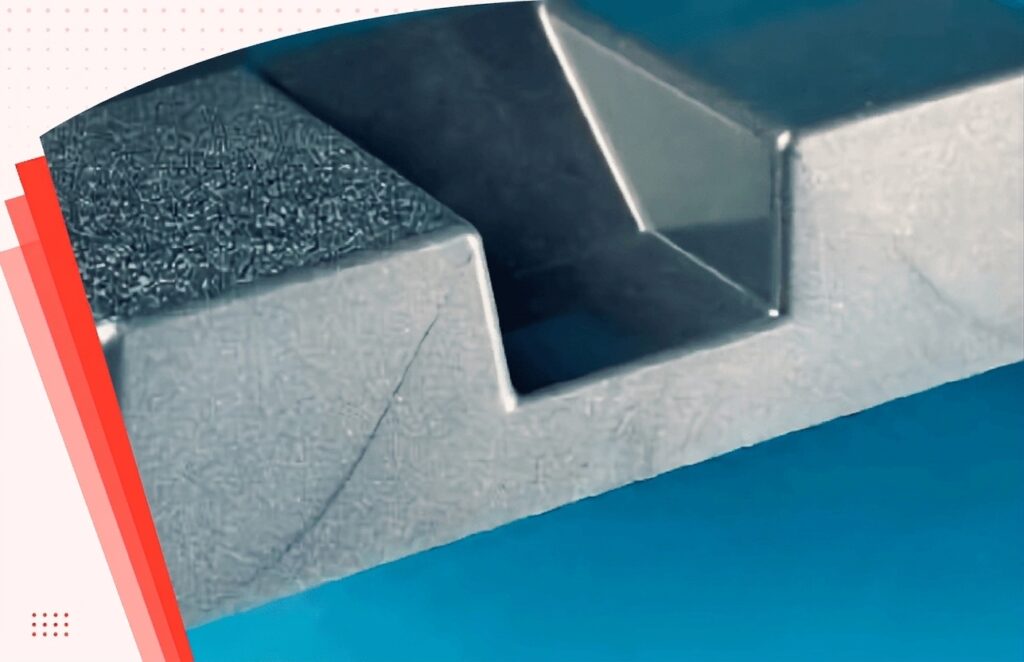

Weld lines in injection molding can cut tensile strength by 10% to 50% depending on resin, melt temperature, and where the knit line forms relative to your load path. That range is not a rounding error. A poorly placed weld line on a glass-filled nylon structural bracket has failed field validation and forced complete gate relocations costing $8,000 to $22,000 in tool modifications. Get gate position and flow geometry right the first time.
What Creates a Weld Line and Why It Matters
A weld line, sometimes called a knit line plastic molders refer to as a “flow front junction,” forms wherever two separate melt fronts meet and fuse. This happens around holes, pins, and inserts, and downstream of multiple gates. The two fronts arrive at roughly the same temperature, press together, and freeze before polymer chains can fully re-entangle across the boundary.
The result is a plane of weakness running through the wall cross-section. On an amorphous resin like ABS or PC, the strength reduction at the weld line is typically 10% to 20% under ideal processing conditions, according to published Moldflow material data. On a 33% glass-filled PA66 running with a melt temperature of 290°C, that reduction climbs to 40% to 50% because glass fibers align parallel to the flow front instead of bridging across it.
Weld line strength is not fixed. It responds to four variables: melt temperature at the point of junction, injection speed, holding pressure, and venting. Raise melt temperature 15°C at the junction and you often recover 8% to 12% of tensile strength by improving molecular re-entanglement time before freeze-off.
How Gate Position Controls Where Weld Lines Land
Gate position is the single highest- decision for weld line placement. Every gate you add to a part creates at least one new knit line somewhere downstream. Your job is to push that weld line into a low-stress, cosmetically acceptable zone before you cut steel.
Run a short-shot study or a Moldflow fill simulation before tool release. We treat fill analysis as mandatory on any part with holes, ribs, or boss clusters because the simulation will show you the weld line location within 1 to 2 mm of where it actually lands in steel. Moving a gate 12 mm along the edge of a housing panel can shift a weld line from a hinge lug carrying 45 N·m to a flat cosmetic wall where strength is irrelevant.
The table below summarizes how gate count and placement style affect weld line count and typical location behavior.
| Gate Configuration | Weld Lines Generated | Typical Location | Relocation Control |
|---|---|---|---|
| Single edge gate | 1 per through-hole or pin | Directly opposite gate, downstream of obstacles | High, move gate axially |
| Two opposing edge gates | 1 centerline weld plus obstacle welds | Part centerline | Moderate, balance fill to shift |
| Fan gate across full width | Obstacle welds only | Downstream of each core pin | Low, controlled by pin spacing |
| Multiple submarine gates | 1 between each adjacent gate | Between gate pairs | High, adjust gate pitch |
Flow Leaders and Deflectors: Moving the Weld Line in Steel
When gate repositioning alone does not move the weld line far enough, flow leaders and flow deflectors give you a second lever. A flow leader is a locally thickened rib or channel cut into the tool steel that accelerates one flow front ahead of the other, forcing the junction to relocate downstream.
A practical example: a 3.0 mm wall housing with a 12 mm boss sitting 25 mm from the gate produces a weld line directly on the boss root. Adding a 0.5 mm deep by 4 mm wide flow leader channel running from the gate side of the boss to the far wall pulls the weld line 18 mm past the boss and onto a thin flat section. That modification costs roughly $400 to $900 in machining time on a P20 tool block, versus $6,500 to $14,000 to relocate the gate entirely if that means moving a hot tip manifold drop.
Flow deflectors work the opposite way. You add a raised land or a slight wall thickness reduction in front of the merging flow fronts to divert them around a feature rather than meeting head-on. Both techniques require simulation confirmation. Cut steel based on the corrected Moldflow prediction, not intuition.
Processing Adjustments That Improve Weld Line Strength
Steel changes cost money. Process changes cost time. Before you approve a tool modification, work through this processing checklist on a qualified press.
- Raise melt temperature in 10°C increments up to the resin supplier’s maximum. Document tensile results at each step.
- Increase injection speed in the fill phase to keep the melt front hotter at the junction point. On a 120-ton press running a 2.8 oz shot, moving from 1.8 in/sec to 3.2 in/sec at the knit zone can raise junction temperature 12°C to 18°C.
- Add or clean vents at the weld line location. A packed gas trap drops junction temperature and creates a burn mark. Vent land depth of 0.0005 to 0.0015 in on ABS; 0.0005 to 0.001 in on PP. SPI mold classification 101 specifies vent depths by material family.
- Increase pack pressure to improve molecular contact across the weld plane. Standard starting point is 80% of fill pressure for 1.5 seconds, then step up.
- Check cooling balance. A hot spot at the weld zone slows freeze-off and helps re-entanglement. A cold spot does the opposite.
Process changes are temporary if the root cause is gate geometry. If you achieve acceptable weld line strength only at the edge of the processing window, the gate position needs correction before production ramp.
How to Hide a Weld Line on a Cosmetic Plastic Part
Weld line prevention is the goal. When you cannot prevent one, you hide it. To hide weld line plastic part designers use three approaches: texture, geometry, and color.
Texture masking is the most reliable option. A VDI 3400 texture at grade 33 or higher (Ra roughly 3.2 to 6.3 µm) scatters light enough to make a weld line invisible to a casual observer at 18 inches. Gloss levels below 10 GU on a 60-degree gloss meter also help. Specify the texture zone to cover the entire weld line path, not just the centerline.
Geometric breaks let you hide the weld line at a corner, step, or parting line edge. A 0.5 mm step down in a wall panel moved to align with the weld line location turns a visible flow junction into an intentional design feature. We have used this approach on consumer electronics housings where gate relocation was not feasible due to a fixed hot runner manifold.
Color matters too. A high-chroma, dark-value color at low gloss hides weld lines better than light grey at high gloss. Natural or white resins with low pigment loading show every junction. If the program requires white at high gloss, expect weld lines to be visible and plan gate and texture strategy accordingly.
Offshore Tooling Considerations for Weld Line Control
In our shops and partner facilities in Dongguan and Ningbo, weld line control comes down to how clearly the DFM report communicates the allowable weld line zone before T1 sampling. Chinese toolmakers build to the parting line drawing and the gate location callout on the tool design package. If your package does not mark a “no weld line zone” on the cosmetic surface drawing, the toolmaker has no basis to flag a problem during design review.
Specify weld line restrictions the same way you specify surface finish: with a zone callout on the part print, a note defining the test method (visual at 18 inches under 500 lux, 45-degree light angle), and a cross-reference to the Moldflow report showing the predicted junction location. This three-part callout has eliminated weld-line-related T2 and T3 sample rejections on 14 of the last 16 offshore programs our project managers have run.
Budget for one gate relocation per complex part family. At offshore rates, a hot tip drop relocation runs $3,500 to $7,000 versus $12,000 to $20,000 at domestic tooling rates, according to our internal project cost tracking from 2022 to 2024. Factor that contingency into your tooling budget at kickoff, not after T1 failure.
Frequently Asked Questions
What is the difference between a weld line and a knit line in injection molding?
The terms are used interchangeably in most shops. Technically, a weld line forms where two melt fronts meet head-on after splitting around a feature, while a knit line plastic literature sometimes uses to describe a meld line where fronts converge at a shallow angle. In practice, both are the same defect type and treated the same way in tool design and process development.
How much does a weld line reduce part strength?
Weld line strength reduction ranges from less than 10% on unfilled amorphous resins processed at optimal conditions to 50% or more on long-glass or high-fill-content materials. The ASTM D638 tensile bar standard is commonly run with and without a weld line to quantify the reduction for a specific resin and process combination. Always get weld-line tensile data from your resin supplier for structural applications.
Can you eliminate weld lines entirely?
Weld line prevention is only fully achievable on parts without holes, inserts, or multiple gates, which describes a small fraction of real production parts. For most parts, the goal is placement control and strength recovery through processing, not elimination. Thin-wall parts under 1.5 mm wall thickness are the exception; high injection speeds and tight cooling control can reduce weld severity significantly.
Where should I specify no-weld-line zones on my part print?
Mark no-weld-line zones on the cosmetic surface callout drawing using a shaded region with a note tied to the Moldflow report. Include the inspection method: visual evaluation at a defined lux level and viewing distance, or dye penetrant for structural welds on opaque parts. Send the Moldflow fill plot with the tool design package so the toolmaker can confirm gate placement supports the zone restriction.
How does cooling affect weld line quality?
Poor cooling balance raises or lowers melt temperature at the junction unevenly, which changes how well the two flow fronts bond. A hot spot near the weld location is actually helpful during fill because it extends the re-entanglement window, but it must freeze before ejection to hold dimensional tolerances. Conformal cooling circuits in H13 or 420SS inserts around a known weld zone give you independent temperature control at that feature without affecting the rest of the cavity.
